Product Name : US Wall Plate True 4K HDMI Video Booster, Decora Type
Product No : VBSTM-AK06LW
Read More
Product Description
  • Compliant with HDMI 2.0
  • Automatic EQ (Sharpness) Adjustment for Optimal Signal Clarity
  • No Software Required, Ensuring Plug and Play Operation
  • No External Power Supply Required When Being Powered by A Source Device
  • Standard US 1-Gang Decora
  • Also Compatible with 2-Gang, 3-Gang, or 4-Gang Boxes
  • 4K 60 444
  • 4K 60 420
  • 4K 30
  • HDCP 2.2
  • HDCP 1.4
US Wall Plate True 4K HDMI Video Booster, Decora Type. VBSTM-AK06LW is a US Decora type HDMI Wall Plate Booster, designed with HDMI source input port at the front plate, extend HDMI video signals over a standard HDMI Cable up to 4K 60Hz at total distance 13M, 1080p at total distance 25M.


RS-232 extension, used for serial communication between
transmitter and receiver via CAT.x or fiber cable connection, is the cost-effective, hardware-based solution providing remote access and control for all RS-232 protocol devices without any setup or configuration. RS-232 extension is suitable to be applied in digital signage, industrial or commercial office, smart classroom, and smart home system.

EDID is the information provided by a monitor to the video source to communicate the monitor’s capabilities. In some cases, display problems may occur due to EDID communication error between the monitor and the source or inappropriate EDID data programmed by display manufacture. Rextron’s auto EDID configuration function allows Rextron’s KVM and video extender systems either to read the necessary EDID information from the extender unit itself or to copy EDID from the EDID compliant monitor.

➤ Trustworthy HDMI Wall Panel Maker

With accumulated rich R&D and production capabilities, the quality of Rextron products has been ordered by industry and consumers. We not only provide our own products but have also been OEMs for world-renowned brands for many years. If you are looking for a trustworthy HDMI wall panel OEM/ODM partner, we believe REXTRON will be your best choice.

  • Video Booster Extends Signal Over An HDMI Cable up to VBSTM-AK06LW / RW: 13M for 4K@60Hz or 25M for 1080p
  • Compatible with The Most Popular Screen Resolutions, Including UHD, WUXGA, Full HD, WSXGA, UXGA, SXGA, and    XGA...Up to 3840 x 2160 60Hz ( 4:4:4 )
  • Compliant with HDMI 2.0
  • HDTV, HDCP 2.0 / 1.4 Compliant and Blu-ray Ready
  • Automatic EQ (Sharpness) Adjustment for Optimal Signal Clarity
  • No Software Required, Ensuring Plug and Play Operation
  • No External Power Supply Required When Being Powered by A Source Device
  • Standard US 1-Gang Decora
  • Also Compatible with 2-Gang, 3-Gang, or 4-Gang Boxes
  • Various Selections of Decoras for Easy Installation on Walls

Model Name

VBSTM-AK06WW

VBSTM-AK06LW (Transmitter)

VBSTM-AK06RW (Receiver)

  Front Plate

  HDMI Input x 1
  (To A Source)

  HDMI Output x 1
  (To A Display)

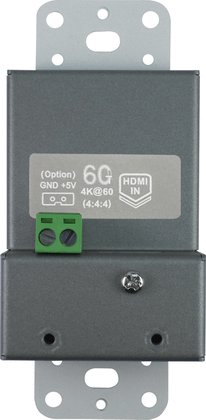

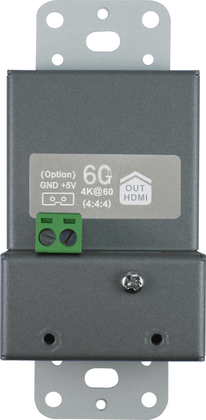

  Rear Plate

  HDMI Output x 1
  (To A Display)

  HDMI Input x 1
  (To A Source)

  Video Resolution (Max.)

  4K@60Hz (3840 x 2160, 4:4:4)

  Transmission Distance
  (Max.)

  4K@60Hz     (3840 x 2160)
  To A Source: 8M
  To A Display: 5M

  4K@30Hz     (3840 x 2160)
  To A Source: 10M
  To A Display: 7M

  Full HD (1920 x 1080)
  To A Source: 15M
  To A Display: 10M

  LED Indicator

  Power Status (Multiple)

  TMDS Clock Rate (Max.)

  600 MHz

  Power Supply

  Power by HDMI Input
  (Optional Power Supply Port In The Rear Plate)

  Enclosure

  Metal

  Weight (g)

  100~115

  H x W x D (mm)

  104 x 46 x 44
  (1 Gang US Decora)



proimages/Connection_/Table_Box_-_Wall_Plate/CP-VBSTM-AK06LW__RW.png
