Product Name : US Wall Plate 4K HDMI Video Booster
Product No : VBSTM-AK01LW
Read More
Product Description
  • Transmit an HDMI signal up to 15M (for 4K2K) or 25M (for1080p) over HDMI cable
  • Compatible with most of the popular screen resolutions, including UHD, WUXGA, Full HD, WSXGA, UXGA, SXGA, and XGA...
  • Automatic EQ (sharpness) adjustment for optimal signal clarity
  • No software required, ensuring Plug and Play operation
  • No external power supply required when being powered by a source device
  • HDTV, 3D HDTV, HDCP compliant and Blu-ray ready
  • 4K 60 420
  • 4K 30
  • HDCP 1.4
US Wall Plate 4K HDMI Video Booster. VBSTM-AK01LW is a US Decora type HDMI Wall Plate Booster, designed with HDMI source input port at the front plate, extend HDMI video signals over a standard HDMI Cable up to 4K 30Hz at total distance 15M, 1080p at total distance 25M.

VBSTM-AK01LW built-in equalizer automatically adjusts the video signal to view your content at the highest quality. The booster wall plate kit can be used in homes, offices, restaurants, bars, and any location where you need to increase the strength of the HDMI source signals over longer distances.

We have already provided various designs to famous brand manufacturers for years, and these A/V and KVM products are widely used in businesses, factories, industrial operations, militaries, government installations and residences. As an ISO9001:2015 registered company, Rextron is always sourcing the materials from the vendors compliant to RoHS and REACH standards, because it is our determination to the quality assurance.
  • Transmit an HDMI signal up to 15M (for 4K2K) or 25M (for1080p) over HDMI cable
  • Compatible with most of the popular screen resolutions, including UHD, WUXGA, Full HD, WSXGA, UXGA, SXGA, and XGA...
  • Automatic EQ (sharpness) adjustment for optimal signal clarity
  • No software required, ensuring Plug and Play operation
  • No external power supply required when being powered by a source device
  • HDTV, 3D HDTV, HDCP compliant and Blu-ray ready
  • Compliant with HDMI v1.4b
  • Standard US 1-Gang Decora
  • Various selections of Decoras for easy installation on walls
  • Also compatible with 2-Gang, 3-Gang, or 4-Gang boxes

Model Name

VBSTM-AK01WW

VBSTM-AK01LW (Transmitter)

VBSTM-AK01RW (Receiver)

  Front Plate

  HDMI x 1
  (for source)

  HDMI x 1
  (for monitor)

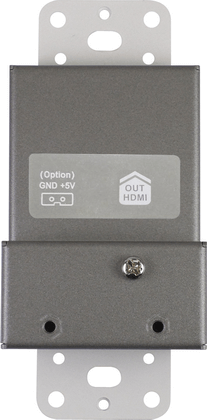

  Rear Plate

  HDMI x 1
  (for monitor)

  HDMI x 1
  (for source)

  Video Resolution (Max.)

  UHD (3840 x 2160)

  Extension Distance (Max.)

  15M @ UHD     (3840 x 2160)
  25M @ Full HD (1920 x 1080)

  LED Indicator

  Power (Single color)

  TMDS Clock Rate (Max.)

  300 MHz

  Power Supply

  Power by HDMI Input
  (Optional Power Supply Port In The Rear Plate)

  Enclosure

  Metal

  Weight (g)

  106

  H x W x D (mm)

   22 x 51 x 80



proimages/Connection_/EDID_Feeder_Booster_Converter/CP-VBSTM-AK01LW__RW.png
