Product Name : US Wall Plate True 4K HDMI Video Booster
Product No : VBSTM-AK06RW
Read More
Product Description
  • Video Booster Extends Signal Over An HDMI Cable up to VBSTM-AK06RW: 13M for 4K@60Hz or 25M for 1080p
  • Compatible with The Most Popular Screen Resolutions, Including UHD, WUXGA, Full HD, WSXGA, UXGA, SXGA, and XGA...Up to 3840 x 2160 60Hz ( 4:4:4 )
  • Compliant with HDMI 2.0
  • HDTV, HDCP 2.0 / 1.4 Compliant and Blu-ray Ready
  • Automatic EQ (Sharpness) Adjustment for Optimal Signal Clarity
  • No Software Required, Ensuring Plug and Play Operation
  • 4K 60 444
  • 4K 60 420
  • 4K 30
  • HDCP 2.2
  • HDCP 1.4
Wall-mount Single Gang 4K HDMI Booster, VBSTM-AK06RW

HDMI Booster, VBSTM-AK06RW, allows users to amplify the HDMI signal and to extend the signal up to 20~35M over HDMI cable. Setup the HDMI Booster between the Video Source and the Monitor, and place the Booster inline between two HDMI cables, up to 15M in length at the video source, and up to 10M in length at the video output. Automatic EQ (Sharpness) is provided for the equalization adjustment of the HDMI signal based on the distance of your cable.

HDMI Booster, VBSTM-AK06RW, supports high resolution up to 4K@60Hz (3840x2160, 4:4:4) and HDCP 2.0/1.4. Compact size easy to install, VBSTM-AK06RW requires concealed wiring for the installation from the Video Source to the Booster. There is no external power adapter required when the Booster can draw sufficient power from the Source Device.
  • Video Booster Extends Signal Over An HDMI Cable up to VBSTM-AK06LW / RW: 13M for 4K@60Hz or 25M for 1080p
  • Compatible with The Most Popular Screen Resolutions, Including UHD, WUXGA, Full HD, WSXGA, UXGA, SXGA, and XGA...Up to 3840 x 2160 60Hz ( 4:4:4 )
  • Compliant with HDMI 2.0
  • HDTV, HDCP 2.0 / 1.4 Compliant and Blu-ray Ready
  • Automatic EQ (Sharpness) Adjustment for Optimal Signal Clarity
  • No Software Required, Ensuring Plug and Play Operation
  • No External Power Supply Required When Being Powered by A Source Device
  • Standard US 1-Gang Decora
  • Also Compatible with 2-Gang, 3-Gang, or 4-Gang Boxes
  • Various Selections of Decoras for Easy Installation on Walls

Model Name

VBSTM-AK06WW

  Input / Output

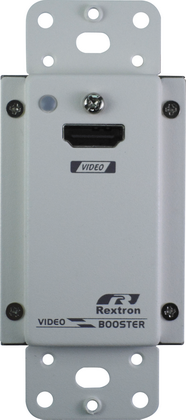

  Front:  HDMI x1 (to Source)/ HDMI x1( to Display)

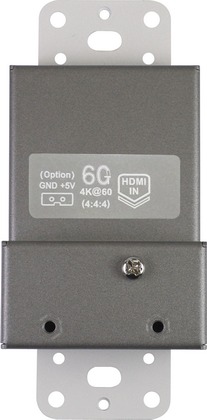

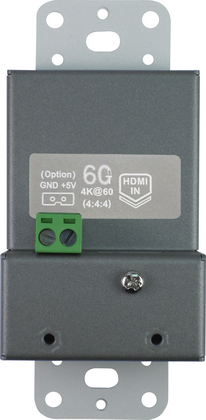

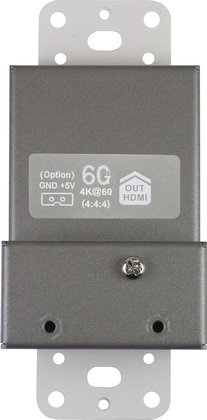

  Rear:    HDMI x1 (to Display)/ HDMI x1( to Source)

  Resolution (max.)

  4K@60Hz(3840x2160)(Source: 8M/ Display: 5M)
  4K@30Hz(3840x2160)(Source:10M/ Display:7M)
  Full HD(1920x1080)(Source:15M/ Display:10M)

  TMDS Clock Rate(Max.)

  600MHz

  Power Supply

  Powered by HDMI Input

  Dimension H x W x D(mm)

  104 x 46 x 44

  Weight (g)

  100-115



proimages/Connection_/EDID_Feeder_Booster_Converter/CP-VBSTM-AK06LW__RW.png
