Long Range 4K DP KVM Extension: Rextron FXPS-M02K over Single-Mode Fiber (Up to 70km)

Product Name : 4K DisplayPort KVM Extender over Fiber with USB 2.0, Audio, IR, Serial, SFP Module, 10~70KM (Single-Mode)

Product No : FXPS-M02K

Allows Reliable Remote Access of a Computer via a Fiber Cable Up to 70KM
Supports Both Single-Mode Fiber Modules and Multi-Mode Fiber Modules
DisplayPort Video Supports Most Popular Resolutions Up to 4K@30Hz ( 4:4:4 )
HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
USB 2.0 Extension Transparently Supports Keyboard, Mouse, USB Storage, and Others
Immunity to High EMI Environment by Fiber System
Support Windows / Mac / Linux / Chrome O.S.
Allows Wide Power Input Range DC 12~48V

Add to Compare

Q'ty :

Inquiry

USB DP Fiber Extender, LC S-M SFP, 4K@30, Two-Way Audio, IR, Serial Extend, Audio Embed and Extract, FXPS-M02K
FXPS-M02K = FXPS-02KP (Tx, USB Host) + FXPS-02KS (Rx, USB Device)

OrderInfo

FXPS-M02K-10, Extension Distance: 10KM

FXPS-M02K-20, Extension Distance: 20KM

FXPS-M02K-30, Extension Distance: 30KM

FXPS-M02K-70, Extension Distance: 70KM

USB DP Fiber Extender, FXPS-M02K, consists of a transmitter (host) and a receiver (device) unit that allows you to extend 4K video/ audio/ USB 2.0/ IR/ RS-232 signals over LC S-M fibre optic cabling. It transmits 4K DP video up to 70km (229,660ft) over OS2 single-mode fiber.

USB 2.0 Hub: Plug and Play USB 2.0 peripheral sharing

The Rextron USB DP Fiber Extender supports USB 2.0 expansion function. 4 USB 2.0 ports on the front and rear of the receiver unit (Rx) are suitable for both long-term and temporary connection of USB peripherals. The USB hub supports most popular Windows, Mac, Chrome OS and Linux operating systems.

2-Way Audio

Extender unit Bi-directional audio extension function is activated and independently transmits audio signal from the transmitter unit to the receiver unit and vice versa. 2-way audio is of great importance in PA system applications, especially in emergency situations, to notify users in the control centre and server room of operational issues, and to enable remote communication and coordination.

Unique Audio Embedding/ De-Embedding Function

The audio embedder function embeds audio from a 3.5mm analogue stereo audio source into the DP signal, and the audio de-embedder function extracts DisplayPort audio into a 3.5mm stereo audio. The Rextron KVM extender FXPS-M02K allows users to embed the audio signal in various ways for more informative content, such as video editing by adding or subtracting the voiceover sound and background music.

IR Extension

The IR extension function supports the full frequency IR signal range from 38KHz to 56KHz. In addition, the distance between the emitter head and the IR port on the unit can be extended to provide users with a flexible and easy way to install IR control systems (up to 1.4 meters of IR cable sold separately).

Serial Extension with Selectable Baud Rate Setting

Full duplex data communication between Tx and Rx is the cost effective hardware based solution. FXPS-M02K provides remote access and control of any RS-232 protocol device without any setup or configuration. The RS-232 serial extension is suitable for use in digital signage, industrial or commercial offices, smart classrooms and smart conference rooms.

Allows Reliable Remote Access of a Computer via a Fiber Cable Up to 70KM
Supports Both Single-Mode Fiber Modules and Multi-Mode Fiber Modules
DisplayPort Video Supports Most Popular Resolutions Up to 4K@30Hz ( 4:4:4 )
HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
USB 2.0 Extension Transparently Supports Keyboard, Mouse, USB Storage, and Others
Front and Rear USB Ports Allow Easy Access
Smart Audio Extension Allows Embeded Audio and Audio Extraction
IR Extension from Console Unit to Computer Unit Facilitates IR Control of AV Sources
RS232 Serial Extension with Selectable Baud Rate Allows for Extensive Control Applications
Immunity to High EMI Environment by Fiber System
Support Windows / Mac / Linux / Chrome O.S.
Interoperability among HDMI / DVI / DisplayPort Models ( Fiber Interface Must be The Same )
Allows Wide Power Input Range DC 12~48V

Model Name	FXPS-M02K
Model Name	FXPS-02KP (Computer Unit)	FXPS-02KS (Console Unit)
MAX.Resolution	3840x2160@30Hz ( 4:4:4 ) 2048x2048@60Hz ( 4:4:4 )
Video Interface	DP Input x 1	DP Output x 1
USB 2.0 Extension	USB-B x 1	USB-A x 4
Speaker Extension	3.5mm SPK Jack x 1 ( In ) ( Audio Embed Function )	3.5mm SPK Jack x 1 ( Out ) ( Audio Extract Function )
Microphone Extension	3.5mm MIC Jack x 1 ( Out )	3.5mm MIC Jack x 1 ( In )
Serial Extension	DB-9 x 1 ( RS-232 DCE )	DB-9 x 1 ( RS-232 DTE )
IR Extension	3.5mm x 1 ( Out )	3.5mm x 1 ( In )
Push Buttons	Reset x 1	Reset x 1, Function x 2
LED Indicators	Status x 1
HDCP Compliance	HDCP 1.4
Fiber Link Port ( 1.25Gbps )	SFP Cage x 1 ( Optional 0~70KM S/M SFP Modules Aailable ) ( Also support multi-mode fiber modules ( Length Depends on Modules )
Extension Range ( Depend on Module )	0~70KM ( Duplex OS1 or OS2, 9/125 μm ) ( Duplex OM3 or OM4 ( 50/125 μm)
Power Supply	DC 12V~48V	DC 12V~48V
Operation Environment	0~40°C, Humidity<80%
Storage Temperature	-20~60°C
Enclosure	Aluminum

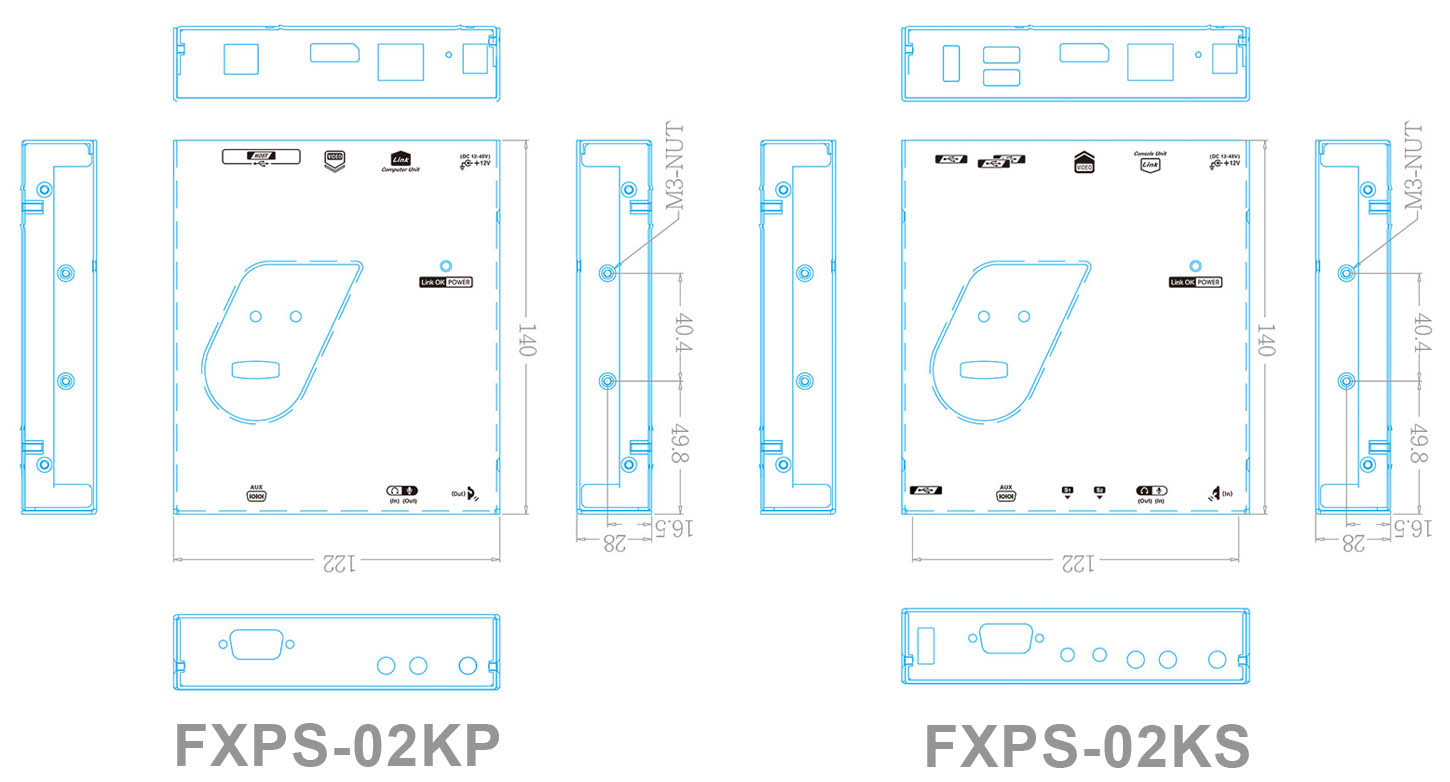

H x W x D (mm)	28 x 140 x 122	28 x 140 x 122
Weight ( g )	297	310
