Product Name : CAT6 HDMI Extender, 4K60 KVM over Copper @100~150M, PoC, USB 2.0, Two-Way Audio/ Serial, and IR Extend
Product No : EXMS-M063
Read More
Product Description
  • Visual Lossless Compression Empowers Reliable 150M Remote Access to a Computer via CAT.6A
  • Most Popular Resolutions Supported Up to 4K@60Hz ( 4:4:4 ), 8bit
  • Smart Audio EXT. Embeds the Analog Audio into the Video Stream when the Speaker Input Detected
CAT6 HDMI Extender, 4K60@100~150M, PoC, USB 2.0, Two-Way Audio/ Serial, and IR Extend, EXMS-M063

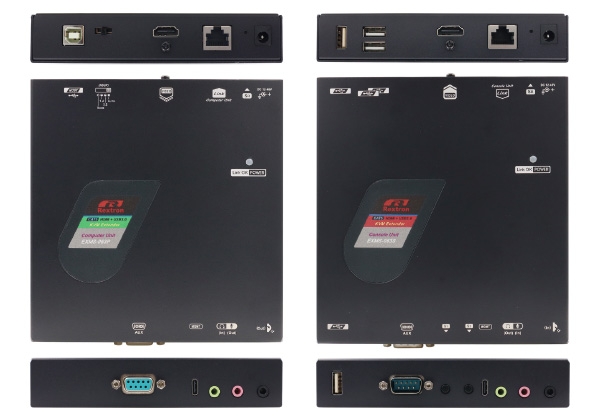

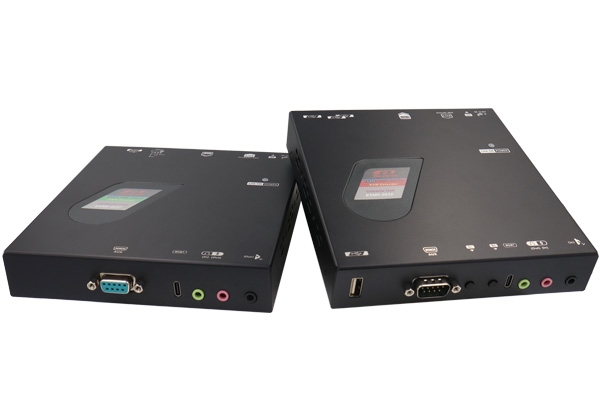

EXMS-M063 = EXMS-063P (Tx, USB Host) + EXMS-063S (Rx, USB Device)

The EXMS-M063 CAT6 HDMI Extender, which transmits signals via CAT6x, consists of a transmitter (host unit) and a receiver (device unit), allowing you to extend HDMI, audio, USB 2.0, infrared, and RS-232 signals over copper cable. The device can transmit 4K@60Hz HDMI video signals over distances of up to 150 meters (490 feet).

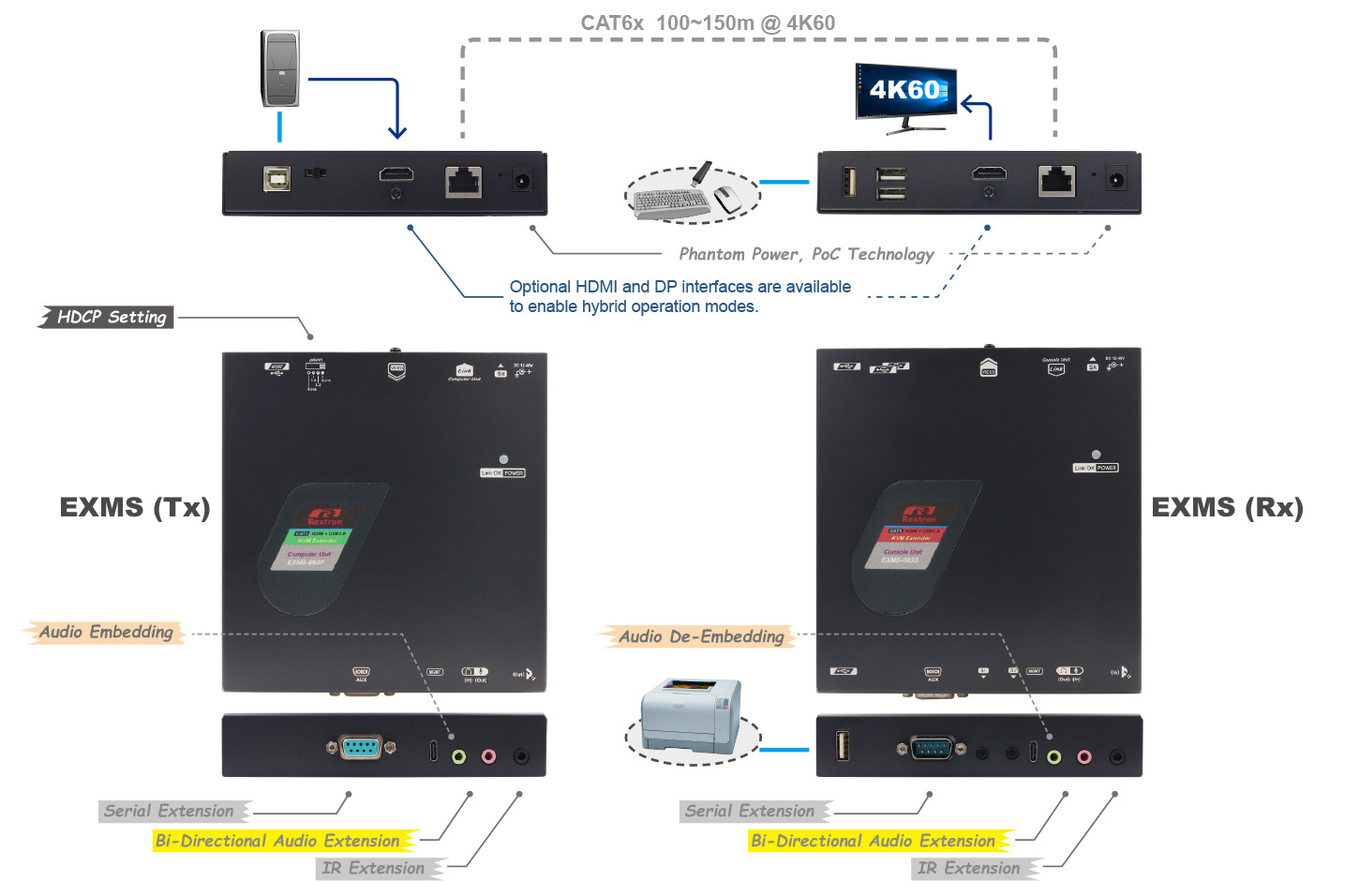

CAT6 HDMI Extender-IO
The EXMS-M063 is an HDMI extender based on Cat6 cabling that supports USB 2.0 extension. The receiver (Rx) unit features a total of four USB 2.0 ports—located on both the front and rear—accommodating both permanent setups and the convenient, temporary connection of USB peripherals. The CAT6 HDMI Extender is compatible with major operating systems, including Windows, Mac, Chrome OS, and Linux.

Infrared Extension
The IR extension function supports full frequency IR signal range from 38KHz up to 56KHz. Furthermore, the distance between the emitter head and the IR port on the unit may be extended to provide users a flexible and easy way in IR control system installation (maximum 1.4 meters IR cable can be purchased separately).

Serial Extension
Full-duplex data communication between Tx and Rx via CAT6 Cable connection is the cost effective, hardware-based solution, providing remote access and control for all RS-232 protocol devices without any setup or configuration. RS-232 serial extension is suitable to be applied in digital signage, industrial or commercial office, smart classroom, and smart Home system.
4K60 CAT6 HDMI Extender-Serial setup
2-Way Audio with Unique Audio Embedding/ De-Embedding Function
This Cat6 HDMI extender features bidirectional audio extension, enabling the independent, two-way transmission of audio signals between the transmitter and the receiver. Audio embedder/ extractor function can independently transmit the audio signal from the Transmitter unit to the Receiver unit, embed audio from a 3.5-mm source to a HDMI signal or extract HDMI audio to a 3.5mm stereo audio, which provides the second audio transmission channel that would be beneficial for the content creator in video postproduction or audio broadcasting with the installation of home cinema amplifier.
  • Visual Lossless Compression Empowers Reliable 150M Remote Access to a Computer via CAT.6A
  • Most Popular Resolutions Supported Up to 4K@60Hz ( 4:4:4 ), 8bit
  • USB 2.0 EXT. Supports Up to 16 Devices
  • Smart Audio EXT. Embeds the Analog Audio into the Video Stream when the Speaker Input Detected
  • IR EXT. Facilitates IR Control of the Video Source
  • Serial Extension Facilitates RS-232 Remote Control with Selectable Serial Baud Rate ( 1200~115200bps )
  • HDCP 2.2 & 1.4, HDR, Dolby Vision Support Ensures Proper 4K Video Playback ( Blu-Ray )
  • PoC ( Power-over-Cable ) Simplifies Connection by Allowing One-Sided Power Connection ( Tx or Rx )
  • Also Available :
  1. 1~70KM Fiber Models ( DP / HDMI )
  2. Dual-Video Model ( HDMI )
  3. Over-LAN KVM Control System ( DP / HDMI )

Model Name

EXMS-M063

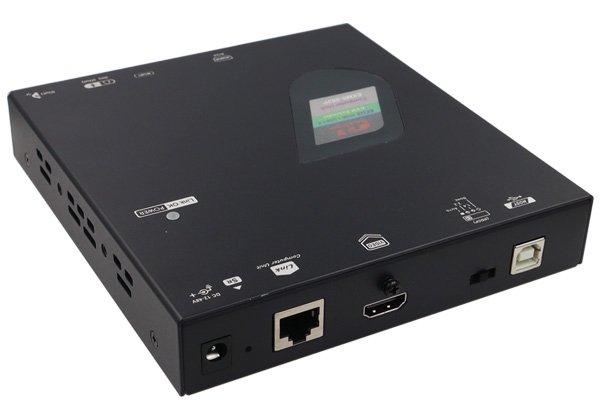

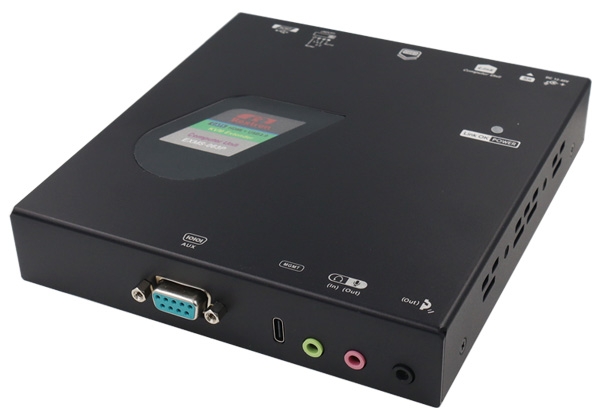

EXMS-063P ( Transmitter )

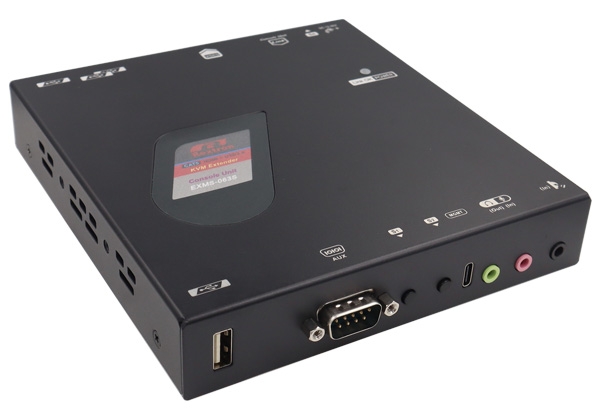

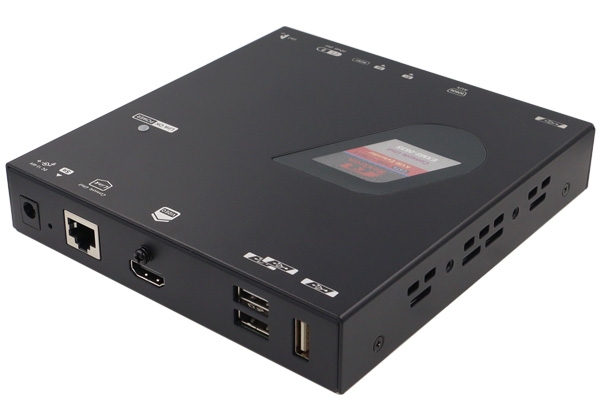

EXMS-063S ( Receiver )

  MAX. Resolution

3840 x 2160@60Hz (4:4:4)

  Video Extension

HDMI 2.0 x 1 ( In )

HDMI 2.0 x 1 ( Out )

  USB 2.0 Extension

USB-B x 1

USB-A x 4 ( Rear & Front )

  Audio Extension

3.5mm SPK Jack x 1 ( In )
( Audio Embed Function )

3.5mm SPK Jack x 1 ( Out )
( Audio Extract Function )

  Microphone Extension

3.5mm MIC Jack x 1 ( Out )

3.5mm MIC Jack x 1 ( In )

  IR Extension

3.5mm IR Jack x 1 ( Out )

3.5mm IR Jack x 1 (In )

  Serial Extension

DB-9 x 1 ( RS-232 DCE )

DB-9 x 1 ( RS-232 DTE )

  Push Buttons

Reset x 1

Reset x 1
S1 x 1 ; S2 x 1

  Slide Switch

HDCP x 1
( Auto / 2.2 / 1.4 / None )

N/A

  LED Indicator

Power / Connection Status x 1

Power / Connection Status x 1

  HDCP Compliance

HDCP 1.4 / 2.2

  Link Port

RJ45 x 1

  Maximum Distance

MAX. 150M ( Point-to-Point )

  Power Supply

DC 12V~48V ( PoC )

DC 12V~48V ( PoC )

  Operation Environment

0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

  Enclosure

Aluminum

  H x W x D (mm)

28 x 143 x152

28 x 143 x 152

  Weight (g)

338

349
