Product Name : 4x2 HDMI KVM Matrix Switch with Audio, USB 3.0, EDID, HDCP Engine
Product No : MKAG-E3214
Read More
Product Description
4x2 HDMI KVM Matrix Switch with Audio, USB 3.0, EDID, HDCP Engine
  • Allow 4 computers to share 2 Monitors and 6 USB Peripherals (4x HID device + 2x USB 3.0 Devices )

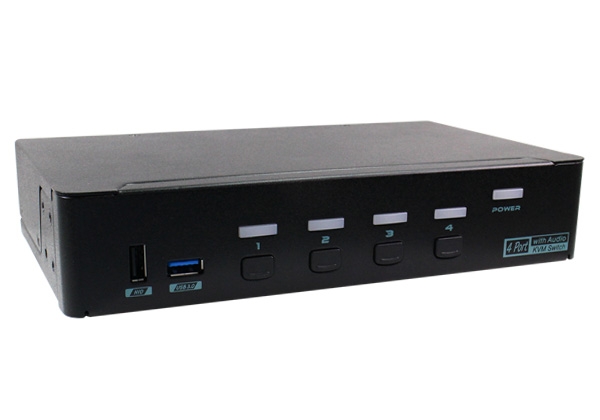

  • Front panel buttons and Hotkey for easy computer selection
  • Video Matrix function allows the user to utilize dual monitor with preferred display combinations
  • HDCP compliance supported in each port ensures video play continuation
  • EDID Auto learn & EDID COPY functions included prevent flickering or black-screening issues
  • Dual Display
  • 4K 30
  • USB 3.2 GEN 1
  • USB2.0
  • USB HID
  • Hotkey Control
  • EDID Management
  • HDCP 1.4
4x2 HDMI KVM Matrix Switch with Audio, USB 3.0, EDID, HDCP Engine, MKAG-E3214

MKAG-E3214, 4x2 HDMI KVM Matrix, enables the user to easily access and control four 4K HDMI computers with one set of USB keyboard, mouse and two monitors and select any two of four different video sources to be displayed on two monitors with the resolutions of up to 4K (3840×2160 @ 30Hz). User can easily switch among four 4K HDMI computers with hotkey or front panel buttons. The built-in HDCP and EDID engine on each HDMI port ensures the optimal and continuous display performance.

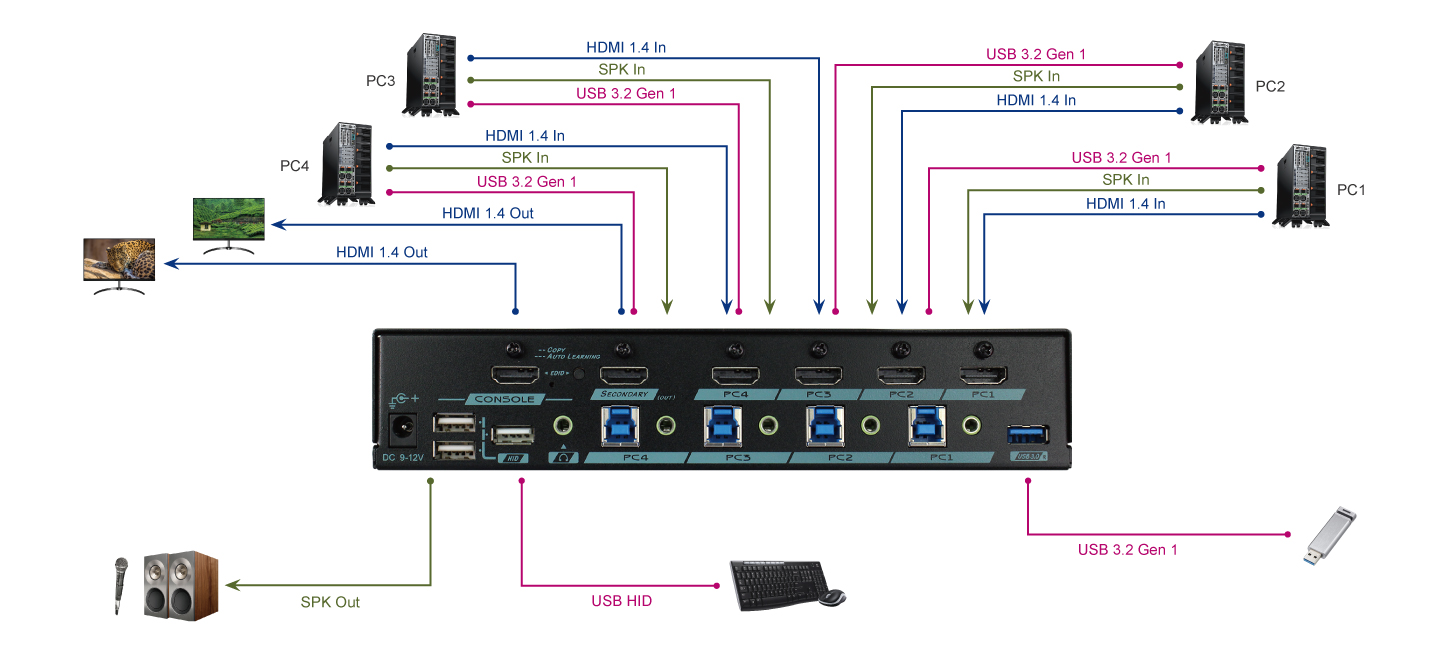

4x2 HDMI KVM Matrix-connection

Easy Control across Multiple Platforms
You can switch 4 computers via user friendly hotkey control function or front panel push button of the 4x2 HDMI KVM Matrix switch. Real-time USB HID ports provide you amazing seamless HID switching experience. Multiple platforms are supported including Windows, Mac, Linux, and Chrome O.S without any software installation.

SUPERSPEED USB 3.2 Gen1 Communications
The integrated USB HUB allows you to share USB peripherals like wired or wireless keyboard, mouse, printer, scanner, webcam, and hard disk between 4 computers with data transfer rate up to 5Gbp/s. Dedicated USB-A ports (USB HID x 4 + USB 3.2 x 2)designed on the front and rear side of the KVM unit suitable for both long-term and temporary USB peripherals access allows users to attach or detach USB devices with ease.

Audio Function
4x2 HDMI KVM Matrix, MKAG-E3214, Independent 3.5mm stereo analog audio transmission, allows user to decide whether or not the audio switching follows the computer switching. Audio follow setting is useful for users to enjoy the wonderful music of another PC while working on the current computer.

EDID Management
The EDID (Extended Display Identification Data) management function enables the 4x2 HDMI KVM Matrix switch either to copy or automatically learn EDIDs from the connected monitor via EDID push button, which ensures the optimized video output without flickering or black-screening issues.

  • Allow 4 computers to share 2 Monitors and 6 USB Peripherals (4x HID device + 2x USB 3.0 Devices )
  • Max resolution up to 3840x2160@30Hz
  • Support dual display output
  • Video Matrix function allows the user to utilize dual monitor with preferred display combinations
  • Front panel buttons and Hotkey for easy computer selection
  • HDCP compliance supported in each port ensures video play continuation
  • EDID Auto learn & EDID COPY functions included prevent flickering or black-screening issues
  • Real-time HID USB port switch without delay presents you seamless operation experience
  • Front and rear USB port design for easy USB devices installation
  • Support keyboard and mouse plug-n-play without drivers
  • Front panel Auto Scan button function available
  • Selectable Scan Time interval
  • Support Windows and Mac system and no software required

Model Name

MKAG-E3214

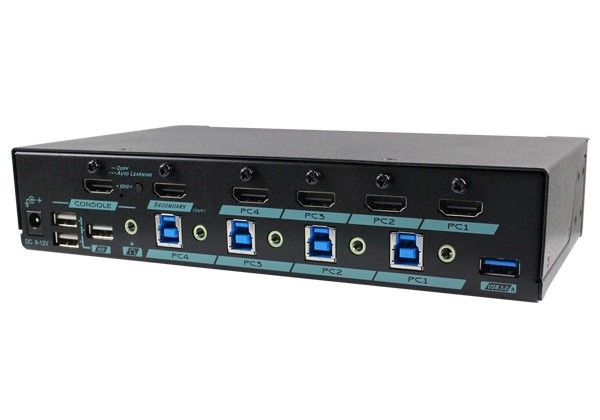

  Computer/Server Ports (input)

HDMI x 4 (Single Video x 4 PCs)
USB 3.2 Gen 1 Type B x 4
Audio Jack in x 4

  Console Ports (output)

HDMI x 2 (Single Video x 2 PCs)
USB 3.2 Gen 1 Type A x 2 (Rear & Front)
USB HID Type A x 4 (Rear & Front)
Audio Jack out x 1

  Video Resolution (Max.)

3840 x 2160@30Hz ( 4:4:4 )

  Push Buttons

Port Selection x 4
EDID Copy Button x 1

  LED Indicator (Power / Status)

Computer Ready x 4
Computer Selected x 4

  Storage Temperature

 -20~60°C

  Operation Environment

0~40°C, Humidity<80%

  Enclosure

Metal

  Power Supply

DC 9~12V

  H x W x D (mm)

40 x 220 x 130

  Weight (g)

1083

4x2 HDMI KVM Matrix with usb 3.0 connection
