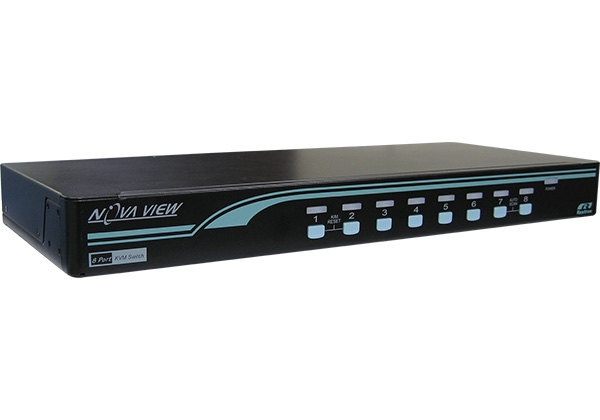

8 Ports VGA KVM Switch with OSD, PS/2, USB, Audio, Hotkey Control, Built-in power adapter
UCANV-108QD
Leading OEM/ODM DisplayPort 1.4 KVM Manufacturer
For years, we kept pace with and provided various design houses and OEM customers with quick and reliable manufacturing and serving. These favorable products including KVM extender, Video extender and USB KVM switch have gained international acclaim and are now widely used in businesses, factories, industrial operations, militaries, government installations, schools and private residences. As an ISO9001:2015 registered company, quality assurance is our first priority. Rextron keeps strict manufacturing process constantly and source more RoHS and REACH compliant materials from all over the world.
What is KVM Switch ?
KVM stands for “Keyboard, Video, and Mouse”. KVM allows you to access multiple computers or servers via only one set of Keyboard, Mouse and Monitor. Computers may be selected by pressing the KVM push button directly, by issuing hotkey commands or by activating OSD window. KVM switch is a compact size pure hardware solution plug-and-play system without any driver or software installation. It simply reduces redundant cables and encourages a neat and tidy working environment, saving you space, time, equipment, and money.
- VGA & USB & PS/2 & Stereo Audio I/O interfaces support on both console and PC side
- Cascade configuration expands system capability
- 1U-height form factor saves rack spaces
- Unique cables for a secured connection
- The auto-scan function automatically selects computer sequentially
- Assigns computers with unique and meaningful names
- Identifies and selects computers by the names
- Programmable scan filters unused computers
- Stores system settings and name entries to non-volatile memory
- Password security locks computer from unauthorized access
- Complete control with easy-to-use OSD interface
- Hotkey functions allow easy computer access
- Keyboard states automatically saved and restored while switching computers
- The operating system is independent and transparent to all applications
- Plug-and-play system configuration
- Supports screen resolutions of up to 1920 x 1440
- DDC2B compatible
- Supports SUN keyboard emulation
- Built-in power adaptor
Model Name |
UCANV-108QD |
Input Port |
VGA x 8 (Grey) |
Output Port |
USB HID Type A x 2 |
Video Resolution (Max.) |
1920 x 1440, DDC2B |
Computer Name Entry |
14-Character |
Auto-Scan Interval |
3, 8, 15, 30 Seconds |
Security Control |
4-Character Password Per CPU |
Applicable to computer |
PS/2 PC, USB PC, USB-Sun, USB-Mac |
On-Screen Display (OSD) |
Yes |
Size |
1U |
Power Supply |
DC 9~12V |
Enclosure |
Metal |
H x W x D (mm) |
44 x 438 x 180 |
Weight (g) |
X |
