Product Name : 8x2 4K HDMI Video Matrix with IR, Serial, Cascade Port
Product No : XKSM-S1092
Read More
Product Description
  • 4K UHD HDMI 8 x 2 Video Matrix
  • Compatible with Screen Resolutions Up to 4K UHD
  • HDCP 1.4 Compliant
  • Advantageous Audio Embedded Function Allows You to Incorporate Desired Audio Signal To Deliver More Informative Contents
  • Auto EDID & EDID Copy Function Ensure Uninterrupted Playback
  • Innovative EGO MX Function: Sources Auto Selection or Prioritized Selection Enable Convenient Operation
  • 4K 60 420
  • 4K 30
  • RS 232 Control
  • IR Control
  • EDID Management
  • HDCP 1.4

XKSM-S1092 8x2 HDMI Matrix supports IR remote and serial control, and allows users to switch between 8 HDMI sources and then delivers the selected video stream to 2 HDMI output devices (Monitor/ Projector). The “Auto-switching / input auto detecting” function always routes the last connecting stream (as first priority) to the output. Dedicated cascade port can cascade 2 stages of matrix units for video source expansion (16 ports max.). You can select the desired input source(s) via the IR remote control or push buttons located on the switch.



The HDMI and 3.5mm audio inputs bring in multiple audio/video feeds supporting audio embedding. Audio embedding function embeds audio from a 3.5-mm source to an HDMI signal and allows users to diversely incorporate the audio signal for more informative contents in video postproduction that are beneficial for the conference call, meeting room or show room application.



EDID Auto Learning and EDID Copy functions allow the HDMI Matrix either to read the necessary EDID information from the unit itself or to copy EDID from the EDID compliant monitor, which ensures that every video source is displayed at the optimal resolution and format without any compatibility issue.



XKSM-S1092 provides 4 extra modes for input source selection including Manual mode, Auto, Priority, and Matrix mode. The input sources selection can be carried out thru the slide switch on the rear panel:

  • Switch mode: the input sources can be selected thru on-panel buttons, RS-232 serial or IR remote control.
  • Auto mode: the last inserted source is automatically selected.
  • Priority mode: Input source selected based on the priority level.
  • Matrix mode: the input sources can be selected thru on-panel buttons, RS-232 serial or IR remote control.

HDMI Matrix-IO

XKSM-S1092 HDMI Matrix supports various ways of control that can be done thru front-panel buttons, RS-232 serial or IR remote control. The RS-232 serial control, built-in RJ-11 serial interface, provides users easy and friendly operation. There’s also an IR sensor window at the front panel designed with great aesthetic and efficiency to quickly and accurately control this unit. Furthermore, the distance between the emitter head and the IR port on the unit may be extended to provide users a flexible and easy way in IR remote control system installation (maximum 3 meters IR extension cable can be purchased separately).

  • 4K UHD HDMI 8 x 2 Video Matrix
  • Compatible with Screen Resolutions Up to 4K UHD
  • HDCP 1.4 Compliant
  • Provide 3 Effective Ways to Control The Unit Via (1) Push Button ( Front Panel ) (2) IR Remote Control (3) Serial Control
  • Advantageous Audio Embedded Function Allows You to Incorporate Desired Audio Signal To Deliver More Informative Contents
  • Output Port Block Button Enables User to Filter and Turn Off Unneeded Video Output
  • Auto EDID & EDID Copy Function Ensure Uninterrupted Playback
  • Exclusive Dedicated Cascade Port :
  1. Augment: Cascade Up to 2 Stages & 16 Video Sources
  2. Dedicated Cascade Port: Ensure None of The 16 Input Ports being Sacrificed for Cascade Connection
  3. Non-Blocking Matrix: Allows Both Outputs to Display Any Input Simultaneously Which Gives Greater Connection Flexibility
  • Innovative EGO MX Function: Sources Auto Selection or Prioritized Selection Enable Convenient Operation
  • Ideal for Large Demonstrations or Meetings for Visibility by A Large Crowd.

Model Name

XKSM-S1092

  Video Resolution (Max.)

4K@30Hz (4:4:4)

  Video Input

HDMI Port x 8 + HDMI Cascade Port x 2

  Video Output

HDMI Port x 2

  Audio Input

3.5 mm Audio Jack x 1

  IR Control

3.5mm IR Jack x 1 ( In )

  Serial Control

RJ-11 x 1

  Slide Switch

Input Auto Detecting x 1

  Push Button

Power x 1
Audio Embed x 1
Input Selection x 16
Output Selection / Output Block x 2
EDID Copy x 1 ( Rear )

  LED Indicator

Output Status  x 2
Audio Embed / Function x 1

  HDCP Compliance

HDCP 1.4 Compliant

  Mode Configuration

Priority / Auto-Sensing / Switch + Sync / Switch

  Video & Audio Configruation

Auto / Inventory

  Power Supply

DC 12V

  Operation Environment

0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

  Enclosure

Metal

  Dimension H x W x D (mm)

44 x 218 x 118

  Weight (g)

950

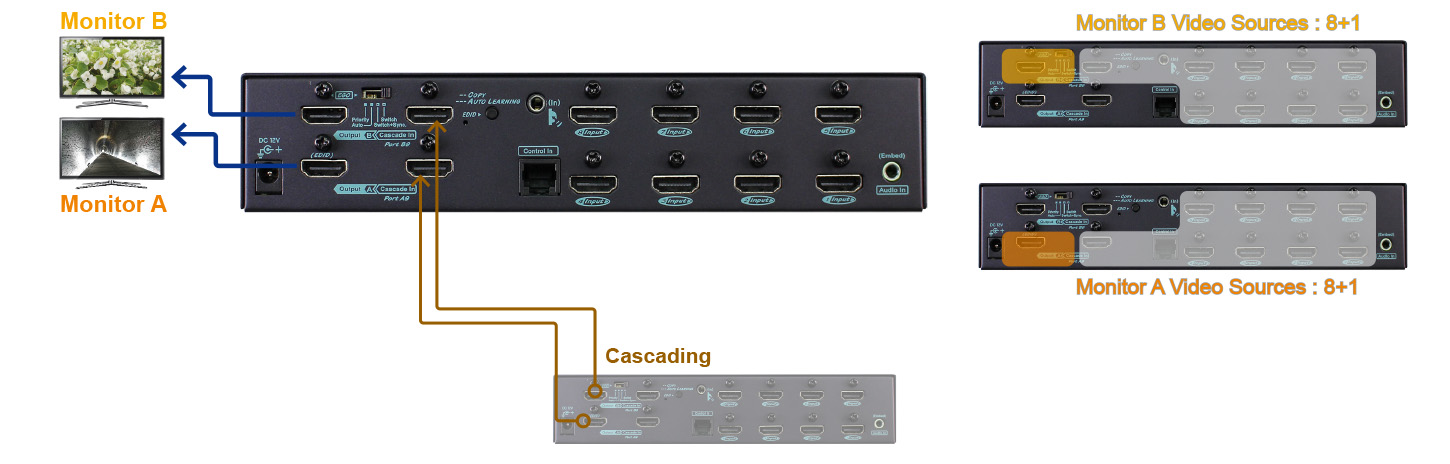

Connection Pattern of XKSM-S1092 4K UHD 8x2 HDMI Matrix
