8x8 VGA Matrix with Audio, IR, Serial
XVA-G0808
8x8 VGA Matrix with Audio, EDID, IR, and RS-232 serial/ GUI control, XVA-G0808

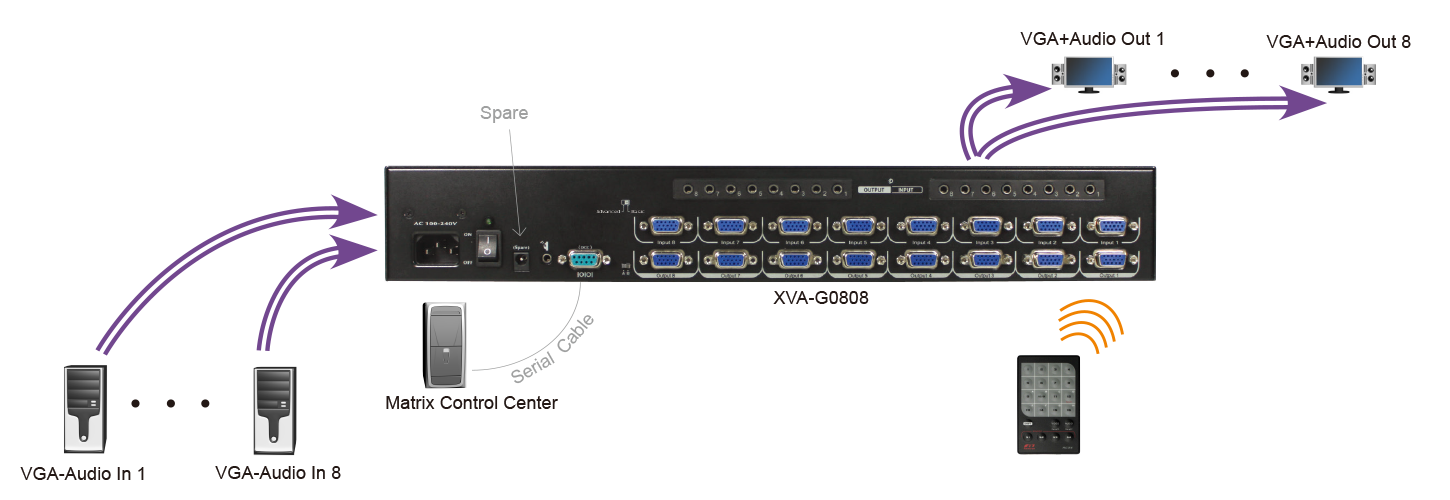

XVA-G0808 8x8 VGA Matrix is one of the most prominent products with Stereo Audio that can route multiple VGA and audio sources to multiple VGA displays (projectors, monitors, and so on) and speakers. It provides you to demonstrate the same image from one PC to all monitors or images from different PCs to different monitors. Multi-controlled functions include front panel buttons with LED indicators and buzzer sound confirmation, IR Remote, and serial control allowing you to operate the system easily and effortlessly. In this way, it utterly discards the need to frequently move around video input and output cables.
XVA-G0808 8x8 VGA Matrix is one of the most prominent products with Stereo Audio that can route multiple VGA and audio sources to multiple VGA displays (projectors, monitors, and so on) and speakers. It provides you to demonstrate the same image from one PC to all monitors or images from different PCs to different monitors. Multi-controlled functions include front panel buttons with LED indicators and buzzer sound confirmation, IR Remote, and serial control allowing you to operate the system easily and effortlessly. In this way, it utterly discards the need to frequently move around video input and output cables.
Signals from a range of input sources can be distributed to various output devices, in essence of creating a "matrix" pattern of interconnection possibilities. It is ideal for presentations, shopping malls, concert stages, classrooms, remote monitoring & training facilities, etc.
The Graphical User Interface (GUI) characteristic offers users easier and friendlier operations. The VGA Matrix not only supports the system to turn ON/OFF the video and audio of each individual output port but also adjusts volume for respective audio ports. Auto scan and selectable scan time interval are also provided. Additionally, users may draw up weekly schedule via serial control and cascade the unit to expand the capacity.
XVA-G0808, VGA Matrix, supports various ways of control that can be done thru front-panel buttons, RS-232 serial or IR remote control. The RS-232 serial control, built-in DB9 serial interface, provides users easy and friendly GUI operation. There’s also an IR sensor window at the front panel designed with great aesthetic and efficiency to quickly and accurately control this unit. Furthermore, the distance between the emitter head and the IR port on the unit may be extended to provide users a flexible and easy way in IR remote control system installation (maximum 3 meters IR extension cable can be purchased separately).
Moreover, VGA Matrix XVA series come with rack mountable size and can be easily mounted on the rack for space saving. This flexible solution that accommodates multiple video displays is especially suitable for applications of public broadcasting.
- Routes 8 different VGA signals and audio sources to 8 different VGA monitors and speakers.
- Supports 1. Button front panel control 2. Serial control 3. IR remote control
- Front buttons for easy switching.
- Activates Auto Scan by front buttons pressing.
- Graphical User Interface (GUI) for easy and friendly operations
- Switches both of the video and audio directly
- Supports to turn ON/OFF the video and audio of each individual output port.
- Adjustable Volume for each audio port
- Programmable Scan / Display pattern
- Selectable Scan Time interval.
- Buzzer sound for switching confirmation.
- Supports video cascading to increase capacity.
- Each output provides one video signal and one audio signal.
- Each input can be independently connected to any or all outputs.
- Supports the video resolution of WUXGA (1920 x 1200) / Full HD (1920x 1080) / UXGA (1600x 1200)
- Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA ….Full HD, WUXGA system.
- 1.5U Height Saves Rack Sapace
|
Model Name |
XVA-G0808 |
|
Video Resolution (Max.) |
Full HD ( 1920 x 1080 ) |
|
Video Input |
VGA x 8 |
|
Audio Input |
3.5 mm Audio Jack x 8 |
|
Video Output |
VGA x 8 |
|
Audio Output |
3.5 mm Audio Jack x 8 |
|
Push Button |
Port Selection x 8 |
|
LED Indicator |
Video Input & Output x 8 |
|
Serial Control Support |
DB-9 x 1 ( RS-232 ) |
|
IR Control |
3.5 mm Audio Jack x 1 ( Rear ) |
|
GUI Control |
Yes |
|
Switch |
On / Off x 1 |
|
Rack Mounted |
1.5U standard height |
|
Power Supply |
DC 12V |
|
Enclosure |
Metal |
|
Dimension H x W x D (mm) |
66 x 440 x 220 |
|
Weight (g) |
X |
