Dual Video HDMI KVM Extender over LAN with Serial, USB, IR, Audio
NVXXMU-M35
Dual Display HDMI KVM Extender over IP, KVM Matrix, 1080p x 2, Audio Embedding / De- Embedding, USB 2.0, Bi-directional IR/ Serial Extension, and Serial/ GUI Control, NVXXMU-M35
NVXXMU-M35 = NVXXMU-35L (Tx/PC, USB Host) + NVXXMU-35R (Rx/Console , USB Device)
Dual Display HDMI KVM Extender over IP, NVXXMU-M35, consists of a Console and a Computer unit that allows you to extend Dual-HDMI using a Gigabit Local Area Network (LAN). Matrix switching extension over IP provides independent Video, Audio, IR, RS-232 routing, and 8 selections (ID) on the DIP rotary switch available for pairing. Dual Display HDMI KVM Extender over IP Dual-Video transmission function supports not only the mainstream but the latest PC graphics cards for multiple monitors setups, which help enhance productivity and is ideal for content creator, graphic designer, CAD/CAM designer, and users in educational and financial institutions to work efficiently.
USB extension function enables users to transmit USB signal thru Extender Unit. NVXXMU-M35, Dual Display HDMI KVM Extender over IP, features USB 2.0 extension and USB peripherals sharing capability without any software or driver installation. Dedicated USB ports designed on the front and rear side of the extender unit is suitable for both long-term and temporary USB peripherals access.
NVXXMU-M35 allows independently transmitting audio signal from the Transmitter unit to the output of the Receiver unit and except for HDMI audio, the separate source audio channel provides the second audio transmission that would be beneficial for content creator in video postproduction or in the case of emergency situation, for notifying users of the computer or server room operation issues.
Bidirectional IR extension feature supports full frequency IR signal from 38KHz to 56KHz. Furthermore, the pigtail design of the external IR extension unit with 1.4m cable (purchased separately) increasing the distance between the emitter and receiver heads and the IR port on the extender unit gives users flexible and easier way in IR control system installation. That provides a unique strength which is often used in combination with home theater and system integration application.
Full-duplex data communication between Transmitter and Receiver via Gigabit Local Area Network (LAN) is the cost effective, hardware-based solution providing remote access and control for all RS-232 protocol devices without any setup or configuration. RS-232 serial extension is suitable to be applied in digital signage, industrial or commercial office, smart classroom, and smart Home system.
- Allows Reliable Remote Access of Multiple Computers at Multiple Console Stations inside a LAN System
- Up to 8 Channels Selectable Using a Rotary Switch and May Braodcast to Up to 8000 Stations
- Support Multi-to-Multi, Multi-to-Single, Single-to-Multi, Single-to-Single Link Topologies
- EDID Management Ensures Display Compatibility
- HDMI Video Supports Most Popular Resolutions Up to 1080P
- HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
- USB 2.0 Extension Transparently Supports Keyboard, Mouse, USB Drive, and Others
- Front and Rear USB Ports Allow Easy Access
- Independent Audio Extension
- Bidirectional IR Extension Facilitates IR Control of AV Sources
- Serial Extension and Serial Control Allows for Extensive Control Applications
- Plug-and-Play, No Driver or Software Required
- Support Windows / Mac / Linux / Chrome O.S.
|
Model Name |
NVXXMU-M35 |
|
|

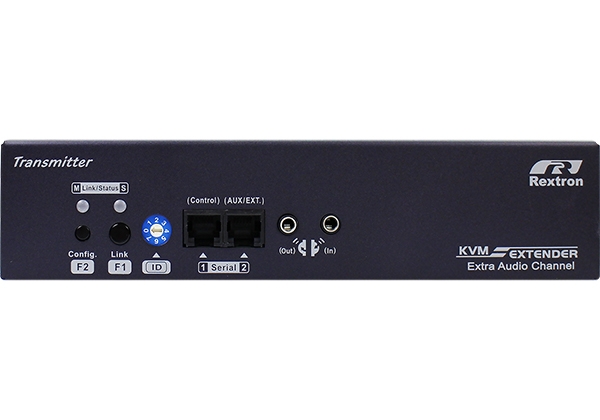

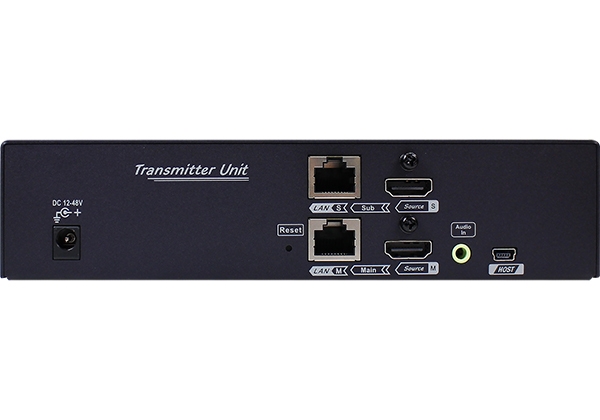

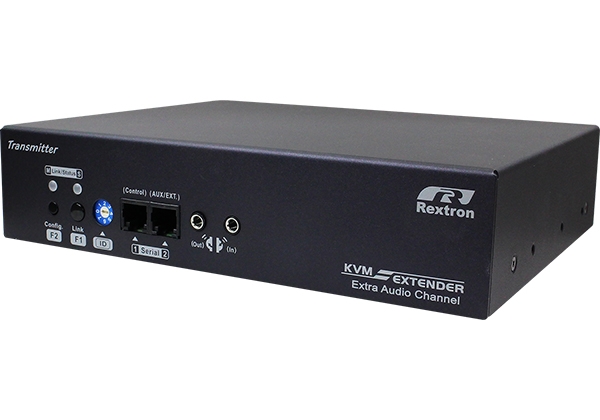

NVXXMU-35L ( Transmitter ) |

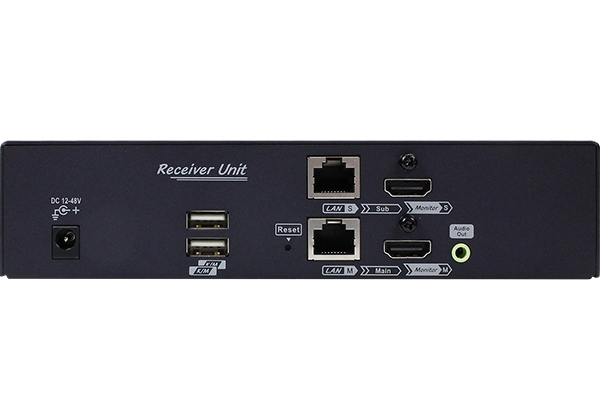

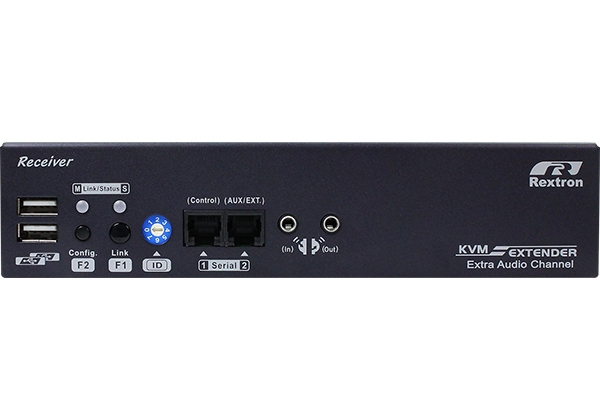

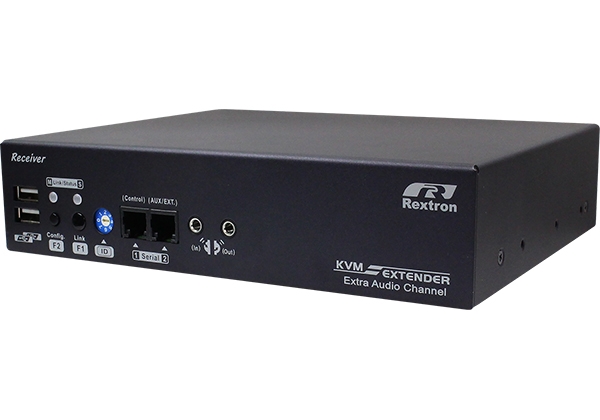

NVXXMU-35R ( Receiver ) |
|
|
Video / Audio Input |
HDMI x 2 |
N/A |
|
Video / Audio Output |
N/A |
HDMI x 2 |
|
USB 2.0 Port |
Mini-USB x1 |
USB 2.0-A x 2 (Front) |
|
Video Resolution (Max.) |
Full HD (1920 x 1080) @ 60 Hz |
|
|
LEDs |
x 2 |
x 2 |
|
Serial Control |
Yes |
|
|
Serial Extension |
Yes |
|
|
IR Extension |
Yes |
|
|
Push Buttons |
Reset x 1, Function x 2 |
Reset x 1, Function x 2 |
|
LAN HUB |
GbE LAN HUB with IGMP, Jumbo Frame |
|
|
MAX. Bandwidth |
850Mbps Each Video Source |
|
|
Maximum Distance |
Point-to-Point : 150M |
|
|
System Expandability (Max.) |
16 |
16 |
|
Control Method |
Web (LAN), Serial |
|
|
Operation Environment |
0~40°C, Humidity<80% |
|
|
Storage Temperature |
-20~60°C |
|
|
Power Supply |
DC 12~48V |
|
|
H x W x D (mm) |
44 x 150 x190 (Each Unit) |
|
|
Weight (g) |
1160~1170 (Each Unit) |
|
