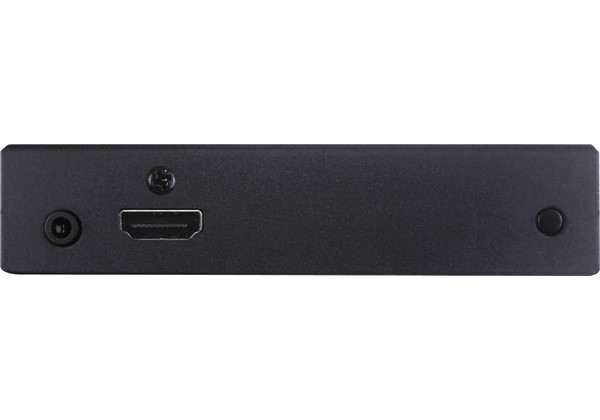

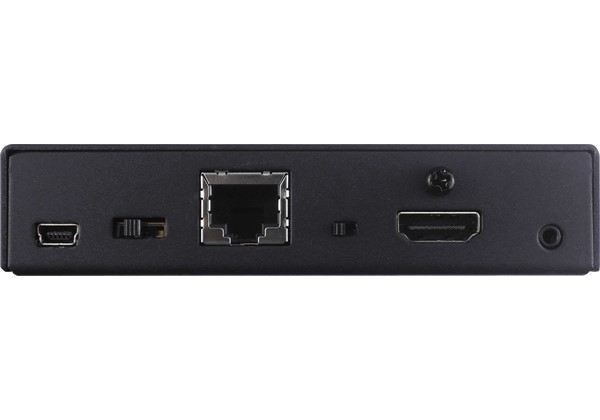

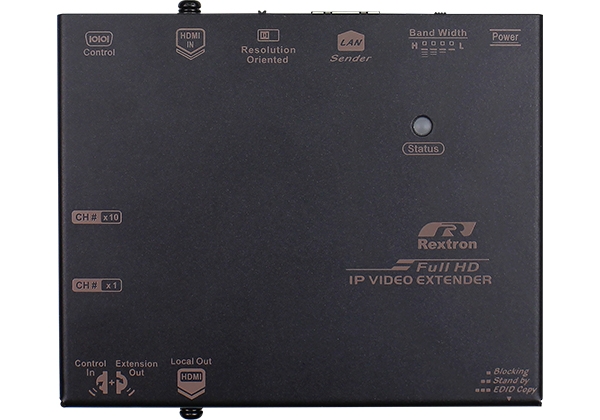

HDMI Video Extender over IP with Local out, Serial, IR ( H.264 ) ( Transmitter )
IPVXM-012L
H.264 HDMI Video Extender over IP with Serial, IR, Transmitter. IPVXM-012L is the transmitter unit of 1080p HDMI over IP Extender IPVXM-M012, which allows transmitting the H.264 format Video and Audio streaming to the receiver unit IPVXM-10R directly or through 100MB hub switch and allows HDMI source to be extended locally up to 100M (330 feet) via Cat 5e/6 cable.
IPVXM-012L is using H.264 over IP technology, Point-to-Point, Single Cast and Multi-Cast Function supported, low bandwidth required, Max. allowed 99 user ID, which allows transmitting 1080p HDMI video and 2 channel audio over LAN or single one Cat 5e/6 cable or WiFi routers, Max. supports up to 1920 x 1080 resolution.
IPVXM-012L is HDMI 1.4 and HDCP 1.4 compliant, could be controlled by push buttons, IR, serial commands or GUI, no software and driver required, compatible with most popular screen resolution, which built-in local HDMI output, Auto EDID Configuration and EDID Copy function to ensure the optimized output. It is the best and economic solution to School, Hospital, Station, Hotel, Digital Signage, Factory, Shopping Mall, or Simple Surveillance Application.
IPVXM-012L is using H.264 over IP technology, Point-to-Point, Single Cast and Multi-Cast Function supported, low bandwidth required, Max. allowed 99 user ID, which allows transmitting 1080p HDMI video and 2 channel audio over LAN or single one Cat 5e/6 cable or WiFi routers, Max. supports up to 1920 x 1080 resolution.
IPVXM-012L is HDMI 1.4 and HDCP 1.4 compliant, could be controlled by push buttons, IR, serial commands or GUI, no software and driver required, compatible with most popular screen resolution, which built-in local HDMI output, Auto EDID Configuration and EDID Copy function to ensure the optimized output. It is the best and economic solution to School, Hospital, Station, Hotel, Digital Signage, Factory, Shopping Mall, or Simple Surveillance Application.
- Extend Compressed H.264 Video Signal over 100 Mega LAN
- 99 Channel Selections on The Rotary DIP Switch Available for Pairing
- Support HDMI with 2ch. Audio
- Automatic EDID configuration & EDID Copy
- Well-developed Ethernet Technology and TCP/IP Communication Protocol
- HDCP1.4 Compliant and Blu-ray Ready
- HDTV Compatible; Support 1080p, 1080i, 720p, 720i
- Compatible with Most of The Popular Screen Resolution up to Full HD System
- Optional VESA Mounting Bracket Supported (for VESA Mounted Display Attachment)
- RS232 ( Pass-through ), 38-56KHz Bi-directional IR & GUI control support
|
Model Name |
IPVXM-012L ( Transmitter ) |
|
Video Resolution (Max.) |
Full HD (1920 x 1080) @ 60 Hz |
|
Video Input |
HDMI x 1 |
|
Video Output |
HDMI x 1 |
|
IR Extension |
Yes ( Rx to Tx ) |
|
LEDs |
x 1 |
|
Control Methods |
Web (LAN), Serial, IR, GUI |
|
System Expandability |
99 |
|
LAN Type |
100MB above LAN |
|
Maximum Distance |
Ethernet-based network |
|
Power Supply |
DC 5V,1 A (Mini USB) |
|
Operation Environment |
0~40°C, Humidity<80% |
|
Storage Temperature |
-20~60°C |
|
H x W x D (mm) |
23 x 88 x 107 |
|
Weight (g) |
340 ~ 360 |
