Product Name : KVM HDMI Extender with USB, EDID Copy, 50M ( PoC )
Product No : SHMU-M250
Read More
Product Description
  • Auto EQ Adjustment for HDMI Ensures Easy Use
  • HDTV Compatible; Support 1080p (Full HD), 1080i, and 720p (HD)
  • 3D-Video, HDCP Compliant, and Blu-ray Ready
  • Plug-and-Play
  • USB Compatible for Most of the Popular USB Devices
  • No Software Needed or Driver Required
Short Haul HDMI USB 2.0 Extender over CAT5, 60M, Auto EDID, HDCP, SHMU-M250
SHMU-M250 = SHMU-250L (Tx, USB Host) + SHMU-250R (Rx, USB Device)

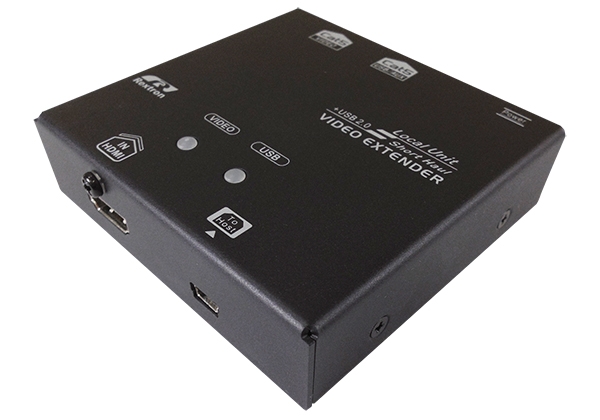

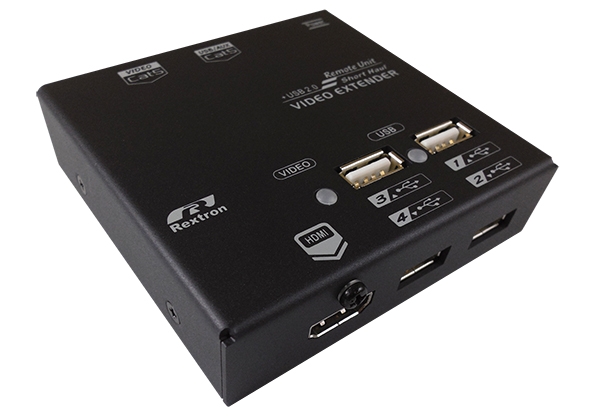

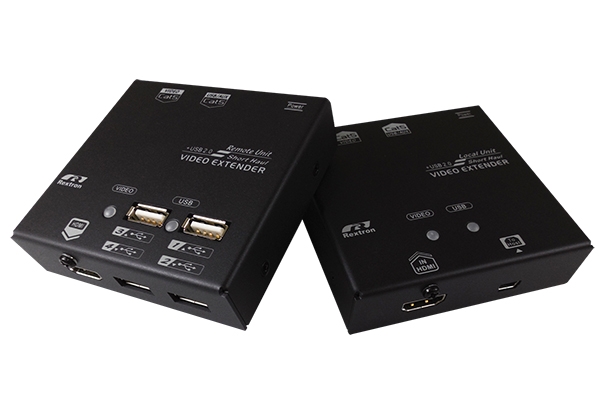

SHMU-M250, HDMI USB 2.0 Extender over CAT5, consists of a HDMI Transmitter SHMU-250L (USB Host) and a HDMI Receiver SHMU-250R (USB Device). It extends the HDMI video and USB 2.0 signals up to 40 meters at 1080p via a single category cable in a point-to-point configuration.

The Receiver unit SHMU-M250 provides DC 5V to each USB-A port and the power supply is not required on the Tx side when the Transmitter unit can draw sufficient power from the Host Device (PC/ Laptop).

SHMU-M250 provides comprehensive EDID management to ensure that HDMI source is displayed at an optimal resolution and format without compatibility issues. Comprising a compact Transmitter and Receiver pair, it can be installed in minutes and requires no special programming.

HDMI USB 2.0 Extender over CAT5, SHMU-M250, is compatible with Windows, MAC and Linux OS. There is no need to install software or driver, just plug and play. Extender unit provides a durable, high quality connection, complies with USB 2.0 specifications, and is downward compatible with USB 1.1 and USB 1.0 devices, which ensures reliable data communication.

Rextron offers a series of USB 2.0 extender family products, and the box type and wall plate type family products are interoperable which means that it allows a box type transmitter to be linked to a wall plate type receiver via CATx cable, and vice versa. The exquisite and compact design of  Rextron Single Gang/ Dual Gang Wall plate Extender series provide an easy surface/wall mounting, allowing users to conceal the cable or other installed equipment and place the connected units easily.
  • Extend HDMI Signal and 4/3 USB up to 60 Meters @ 1080i / 40 Meters @ 1080p (CAT6)
  • Auto EQ Adjustment for HDMI Ensures Easy Use
  • HDTV Compatible; Support 1080p (Full HD), 1080i, and 720p (HD)
  • 3D-Video, HDCP Compliant, and Blu-ray Ready
  • Plug-and-Play Allows You to Add or Remove Devices at Any Time
  • USB Compatible for Most Popular USB Devices (USB Web Cams, USB Printers, USB Scanner, and External Hard Disk Drives ....)
  • Unique Mechanism Design of Two Ports on top (SHMU-250R) for Easily Connecting USB Peripherals.
  • Automatically Read EDID Data from The Connecting Display and Store (Record) The Last EDID Data to The Video Extension System
  • No Software Needed or Driver Required

Model Name

SHMU-M250

SHMU-250L ( Transmitter )

SHMU-250R ( Receiver )

  Video Input

HDMI x 1

N/A

  Video Output

N/A

HDMI x 1

  USB 2.0 Port

Mini-USB x 1

USB-A x 4

  EDID Copy Button

x 1

N/A

  EQ Adjustment

Auto

  LED (Power / Video Status)

Multi-Color x 1

Multi-Color x 1

  Video Resolution (Max.)

1080p

  Extension Distance

50M (CAT.5e) @ 1080i (8bit x 3)
30M (CAT.5e) @ 1080p (8bit x 3)
60M (CAT.6) @ 1080i (8bit x 3)
40M (CAT.6) @ 1080p (8bit x 3)

  Operation Environment

0~40°C, Humidity<80%

  Storage Temperature

20~60°C

  Enclosure

Metal

  Power Supply

  USB BUS Power
  (Apply DC 5V if Necessary)

  DC 5V

  Weight (g)

225~245

  Dimension (H x W x D) (mm)

22 x 84 x 79
