HDMI Short Haul Video Extender with EDID Copy ( PoC )
SHM-M200
Short Haul HDMI Extender over CAT5, 60M, EDID, HDCP, EQ Adjustment, Phantom Power, SHM-M200
SHM-M200 = SHM-200L (Transmitter) + SHM-200R (Receiver)
SHM-M200, HDMI Extender, consists of a HDMI Transmitter SHM-200L and a HDMI Receiver SHM-200R. It extends the HDMI video signal up to 40 meters at 1080p via a single category cable in a point-to-point configuration.
Video Adjustment
EQ Selector at the Receiver Unit (SHM-200R) allows easy adjustments in sharpness of the video image according to the cable length for better clarity.
HDMI Extender, SHM-M200 provides comprehensive EDID management to ensure that HDMI source is displayed at an optimal resolution and format without compatibility issues, allowing users to copy or learn EDID from the monitor via front panel EDID button pressing. Comprising a compact Transmitter and Receiver pair, it can be installed in minutes and requires no special programming.
Rextron offers a series of HDMI extender family products, and the box type and wall plate type family products are interoperable which means that it allows a box type transmitter to be linked to a wall plate type receiver via CATx cable, and vice versa. The exquisite and compact design of Rextron Single Gang/ Dual Gang Wall plate Extender series provide an easy surface/wall mounting, allowing users to conceal the cable or other installed equipment and place the connected units easily.
- Extend HDMI signal up to 60 meters @ 1080i (CAT6)
- EQ (Sharpness) adjustment for optimal signal clarity
- Fully compatible with HDMI standard by DDWG
- HDTV compatible; support 1080p, 1080i, 720p
- Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA… Full HD system
- 3D-video, HDCP compliant and Blu-ray ready
- Plug-and-Play allows you to add or remove devices at any time
- Easy to install and simple to set up
- No software needed or driver required
- Support Phantom Power-- single power supply ar either one end of two units (Local Unit & Remote Unit)
Exclusive EDID Function
- Read and store (record) the EDID from the connecting display to the video extension system
- Alternatively, perform the default or the copied EDID when one CATx cable connected without HDCP compliant
- EDID Auto-detecting when two CATx cables are connected
- Multi-modes for EDID handshaking, like EDID copy, EDID Auto-detecting, and default EDID intruding, ensuring accurate output display
|
Model Name |
SHM-M200 |
|
|

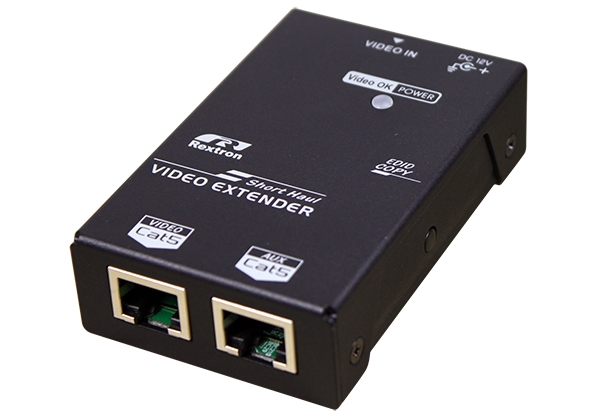

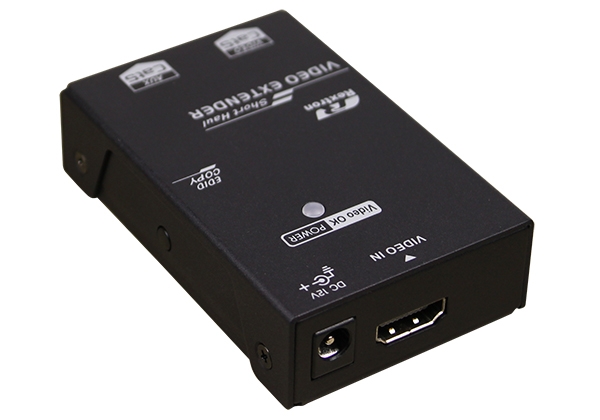

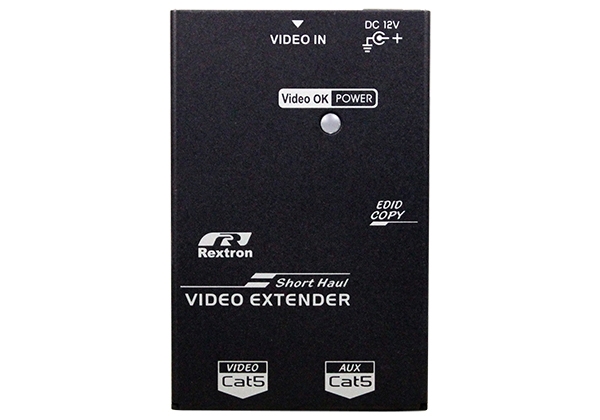

SHM-200L ( Transmitter ) |

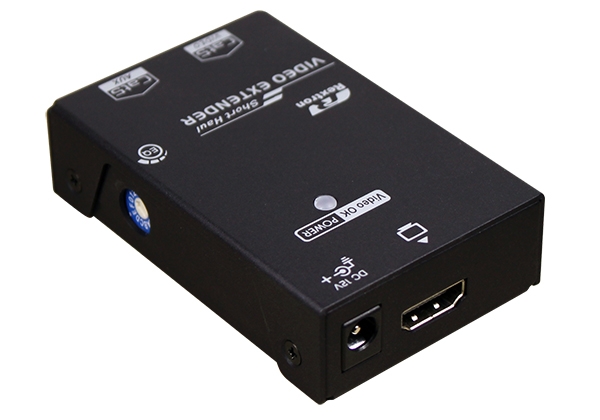

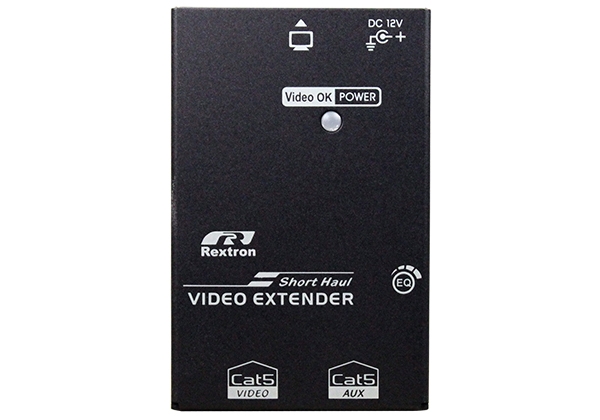

SHM-200R ( Receiver ) |
|
|
MAX. Resolution |
Full HD (1920 x 1080) @ 60 Hz |
|
|
Video Extension |
HDMI x 1 ( In ) |
HDMI x 1 ( Out ) |
|
EDID Copy Button |
x 1 |
N/A |
|
EQ Adjustment |
Manual |
|
|
LED (Power / Video Status) |
Multi-Color x 1 |
Multi-Color x 1 |
|
HDCP Compliance |
HDCP 1.4 |
|
|
CAT.x Link Port |
RJ45 x 2 |
|
|
Extension Distance |
50M (CAT5e) @ 1080i (8bit x 3) |
|
|
Power Supply |
DC 12V (either unit) |
|
|
Operation Environment |
0~40°C, Humidity<80% |
|
|
Storage Temperature |
-20~60°C |
|
|
Enclosure |
Metal |
|
|
Dimension (H x W x D) (mm) |
22 x 51 x 80 |
|
|
Weight (g) |
155~165 |
|
