8 Ports Dual Console VGA KVM Switch, OSD, 1U Rack Mount, Built-in Power, UENV-2108QD

Product Name : 8 Ports VGA KVM Switch with Dual Console, OSD, PS/2, USB, Audio, Hotkey Control, Built-in power adapter

Product No : UENV-2108QD

Allow two users to share multiple computers both in local and remote areas
Cascade configuration expands system capability
1U-height form factor saves rack spaces
The auto-scan function automatically selects computer sequentially
Password security locks computer from unauthorized access
Complete control with easy-to-use OSD interface
Hotkey functions allow easy computer access
Supports screen resolutions of up to 1920 x 1440
Supports SUN keyboard emulation
Built-in power adaptor

Add to Compare

Q'ty :

Inquiry

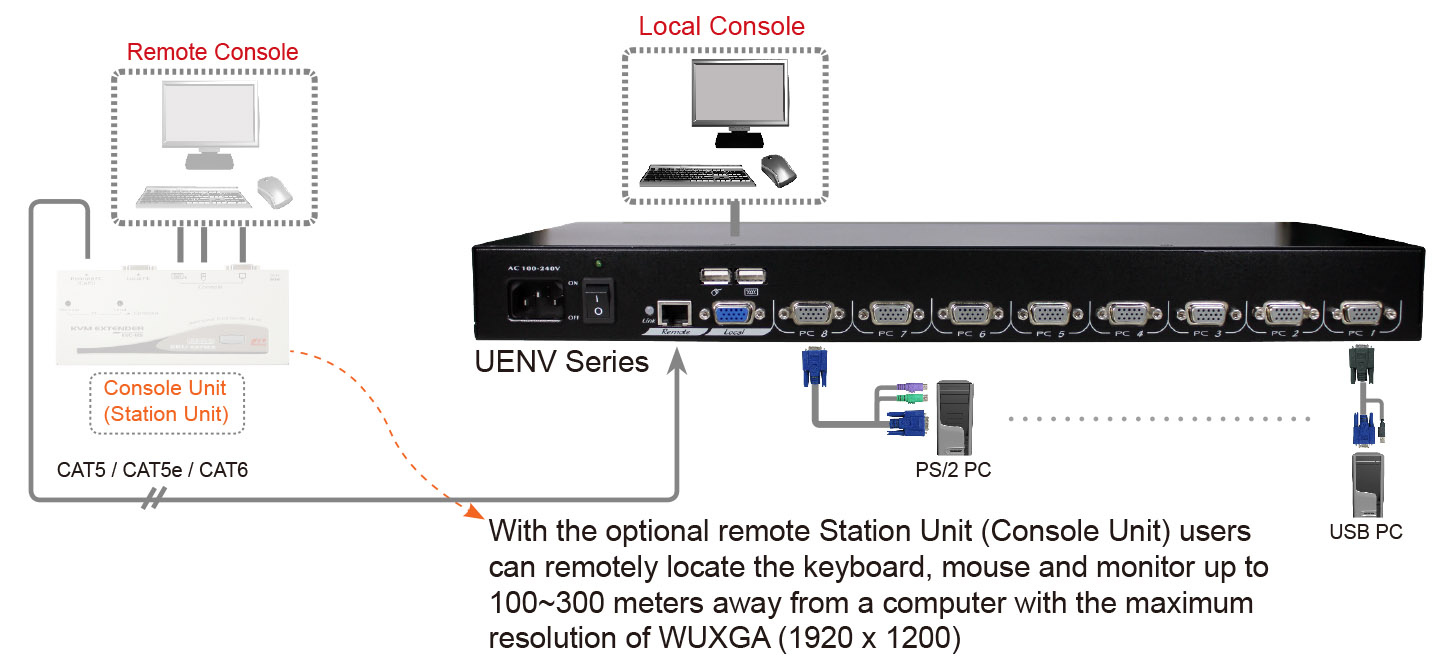

UENV-2108QD, 8 Ports Dual Console VGA KVM Switch, supports PS/2 and USB Keyboard/ Mouse, Internal Power with 110~240V AC, and One RJ-45 extension port. The local console enables users to access 8 computers directly, while the remote console allows users to remote control the 8 computers via Cat.5e/6 cable at 400M away via KVM extender Console Unit (purchased separately). VGA KVM switch designed with a built-in microprocessor which emulates keyboard and mouse presence on the computer cold booting.

Dual Console VGA KVM Switch supports Daisy chain function for the control of up to 64 computers, and provides flexible methods for PC switching such as push buttons, hotkeys, and on screen display.

Security management and auto-scan function enable users to lock the computers from the unauthorized access and filter the unused computer automatically or manually. Furthermore, UENV-2108QD supports video compensation (RGB Skew Corrector) that ensures the optima display on remote console.

UENV-2108QD is a pure hardware design, easy maintenance and DDC2B compatible, installed in 1U space 19” rack chassis and is ideal for server rooms, data centers, ISP or testing lab.

DDC (Display Data channel) is a collection of protocols for the digital communication between a computer display and a graphics card that enable the display to communicate its supported display modes to the graphics card and that enable the computer host to adjust monitor parameters, such as brightness and contrast. It aimed to provide plug and play characteristic to computer display.

DDC2B also called DDC2, is the most common version of DDC, allows bi-directional communication between host and display enables the graphics card to change display mode without reboot, and even enables host to read EDID even if the display is powered off.

Leading OEM/ODM DisplayPort 1.4 KVM Manufacturer

On the cutting edge of IT field, with ample OEM/ODM experience, mature manufacture capability and R&D resource, Rextron Integrated the factory & sub-contractors, brought ideas to reality, and turned concept into the viable IT related products ready for the market.

For years, we kept pace with and provided various design houses and OEM customers with quick and reliable manufacturing and serving. These favorable products including KVM extender, Video extender and USB KVM switch have gained international acclaim and are now widely used in businesses, factories, industrial operations, militaries, government installations, schools and private residences. As an ISO9001:2015 registered company, quality assurance is our first priority. Rextron keeps strict manufacturing process constantly and source more RoHS and REACH compliant materials from all over the world.

What is KVM Switch ?

KVM stands for “Keyboard, Video, and Mouse”. KVM allows you to access multiple computers or servers via only one set of Keyboard, Mouse and Monitor. Computers may be selected by pressing the KVM push button directly, by issuing hotkey commands or by activating OSD window. KVM switch is a compact size pure hardware solution plug-and-play system without any driver or software installation. It simply reduces redundant cables and encourages a neat and tidy working environment, saving you space, time, equipment, and money.

Allow two users to share multiple computers both in local and remote areas
Cascade configuration expands system capability
1U-height form factor saves rack spaces
Unique cables for a secured connection
The auto-scan function automatically selects computer sequentially
Assigns computers with unique and meaningful names
Identifies and selects computers by the names
Programmable scan filters unused computers
Stores system settings and name entries to non-volatile memory
Password security locks computer from unauthorized access
Complete control with easy-to-use OSD interface
Hotkey functions allow easy computer access
Keyboard states automatically saved and restored while switching computers
The operating system is independent and transparent to all applications
Plug-and-play system configuration
Supports screen resolutions of up to 1920 x 1440
DDC2B compatible
Supports SUN keyboard emulation
Built-in power adaptor

Model Name	UENV-2108QD
Input Port	VGA x 8 (Grey) Audio in x 8 Audio out x 8
Output Port	USB HID Type A x 2 VGA x 1 RJ-45 x 1
Video Resolution (Max.)	1920 x 1440, DDC2B
Computer Name Entry	14-Character
Auto-Scan Interval	3, 8, 15, 30 Seconds
Security Control	4-Character Password Per CPU
Applicable to computer	PS/2 PC, USB PC, USB-Sun, USB-Mac
On-Screen Display (OSD)	Yes
Size	1U
Power Supply	DC 9~12V
Enclosure	Metal
H x W x D (mm)	44 x 438 x 180
Weight (g)	X
