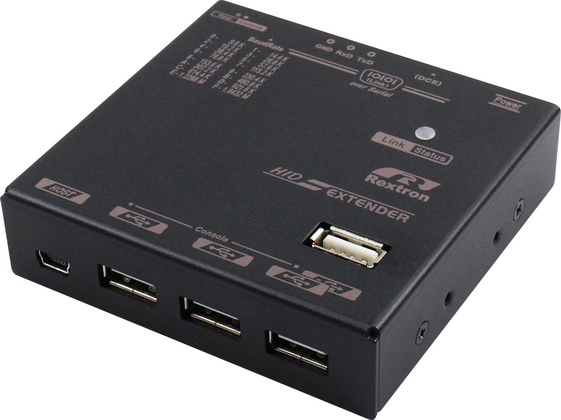

Product Name : USB HID Reinforcer Add USB HID to Any Extender with Serial Extension
Product No : USBXS-M120
Read More
Product Description
  • Add USB-HID Transmit Function to Any Extender with Serial Extension Function (RS-232)
  • Allow You to Transmit 4 USB-HID Signals over Serial Port.
  • USB-HID Signal Extension Distance Can Match Your Extender’s Max. Setting
  • Support USB HID Devices Like Keyboard, Mouse, and Touch Screen

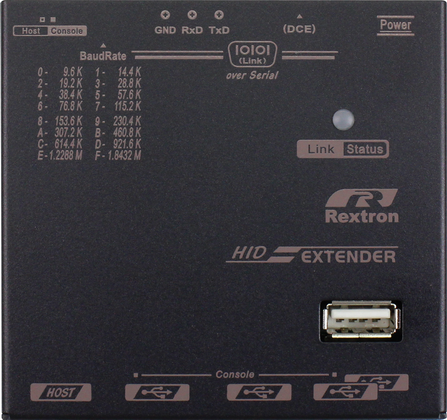

  • Rotary Dip Switch Allows User to Match The Baud Rate Setting of The Video Extender from 9.6Kbps to 1.8432Mbps
  • Plug-n-Play System without Any Driver or Software Installation
  • Fully support Windows and Mac System
  • USB HID
USB to Serial Converter acting as Host Role or Device Role, USB HID Extender when used in Pairs, USBXS-M120
USBXS-M120= USBXS-120+ USBXS-120

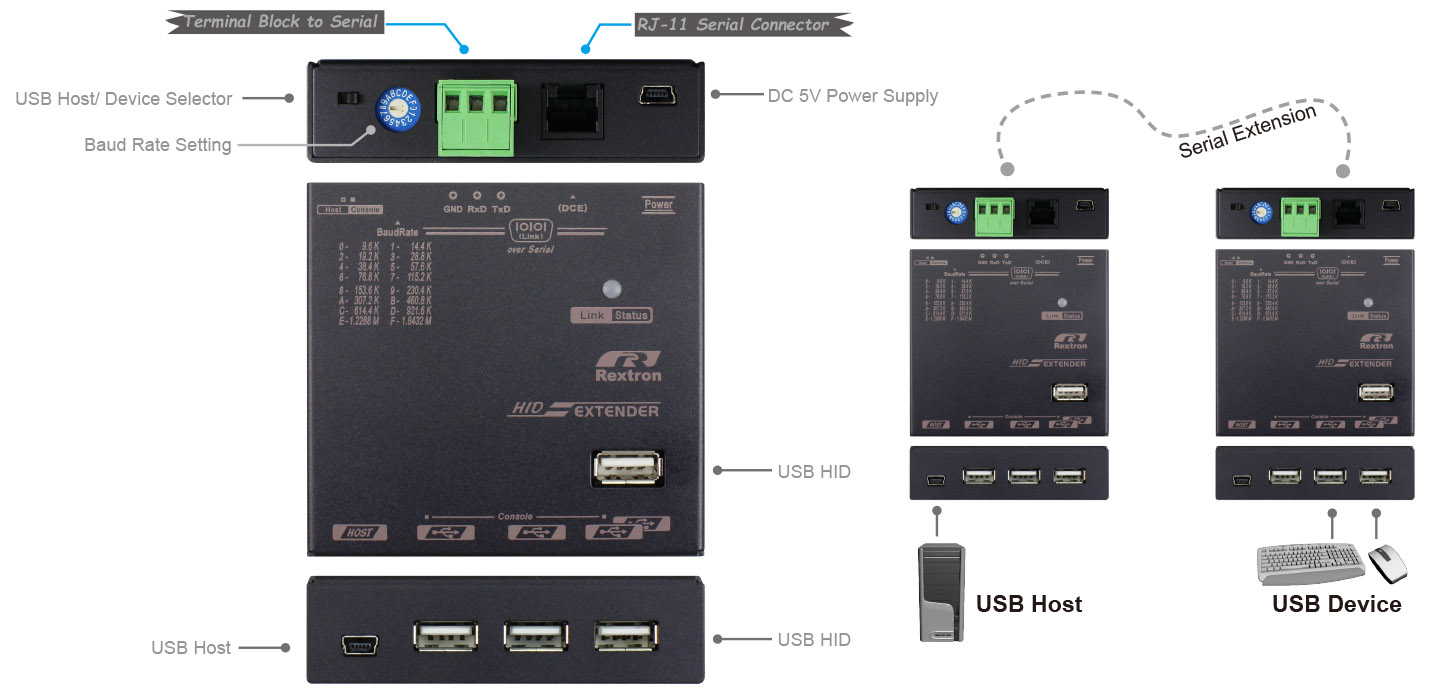

USB to Serial Converter-IO

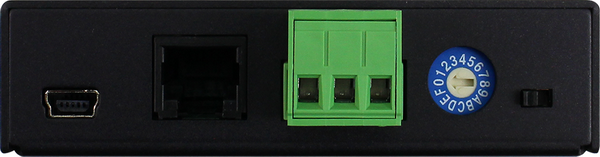

USB to Serial Converter, USBXS-120, converts USB HID to Serial interface of RS-232 (Terminal Block/ RJ-11 Connector). The unit supports and acts as 4 USB HID Devices or can act as a USB Host. Slide switch on the rear side of the unit provides the USB Host/ Device setting.

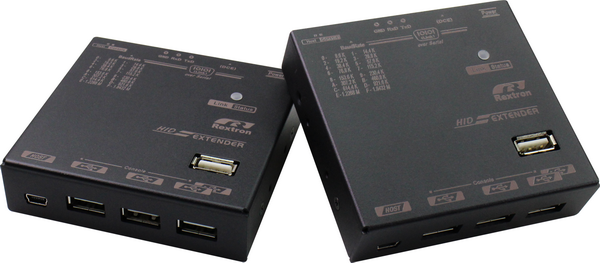

USB HID Extender, USBXS-M120, is composed of two USBXS-120 units with one USBXS-120 acting as USB Device and the other USBXS-120 acting as USB Host. The Units transfer the USB HID to Serial and extend the communication distance via Serial Cable or Serial Extender with 16 Baud Rate settings from 9.6Kbps to 1.8432Mbps.
  • Add USB-HID Transmit Function to Any Extender with Serial Extension Function (RS-232)
  • Allow You to Transmit 4 USB-HID Signals over Serial Port.
  • USB-HID Signal Extension Distance Can Match Your Extender’s Max. Setting
  • Support USB HID Devices Like Keyboard, Mouse, and Touch Screen
  • Host / Device Slide Switch to Help Users for Reverse Operation
  • Rotary Dip Switch Allows User to Match The Baud Rate Setting of The Video Extender from 9.6Kbps to 1.8432Mbps
  • Plug-n-Play System without Any Driver or Software Installation
  • Fully support Windows and Mac System

Model Name

USBXS-M120

USBXS-120L(Local Unit)

USBXS-120R(Remote Unit)

  Computer/Server Ports (input)

Mini-USB x 1 (Host)

RJ-11 x 1

  Console Ports (output)

RJ-11 x 1

USB-A x 4(Device)

  Terminal Block

1

1

  Slide Switch

1

1

  Rotary DIP Switch

x 1
(16 positions for Baud Rate Setup from 9.6Kbps to 1.8432 Mbps)

x 1
(16 positions for Baud Rate Setup from 9.6Kbps to 1.8432 Mbps)

  LED Indicator
  (Power / Status)

1

1

  Extension Distance (Max.)

Based on Extender's Max. Distance

Based on Extender's Max. Distance

  Power Supply

Mini-USB 5V (From Computer)

Mini-USB 5V

  Operation Environment

0~40°C, Humidity<80%

0~40°C, Humidity<80%

  Storage Temperature

-20~60°C

-20~60°C

  Enclosure

Metal

Metal

  H x W x D (mm)

22 x 83 x 78

22 x 83 x 78

  Weight (g)

230

230
