The video switches and splitters are very useful for many A/V applications in our daily life. Before buying the video switch or splitter, it is important to understand the essential features of the device you look for.

  • ➤ Video switcher is a solution (a device) used to connect between multiple video sources and compatible displays for switching among the videos sources easily.
  • ➤ Video splitter is a boosting device allowing users to duplicate and simultaneously broadcast the video signal from a single video source to multiple compatible displays.
  • ➤ Video Matrix is a combined solution of video switch and splitter, it can be used to transport video from multiple video sources to multiple displays, allowing users freedom to assign one or multiple of the connected video sources to display on one or multiple of the connected displays.
  • ➤ Video scaler is a solution (a device), it can be used to convert the video signals from one size or resolution to another, allowing users to increase or decrease the input source resolution for video output at the specified ratio.
View : Products Per Page

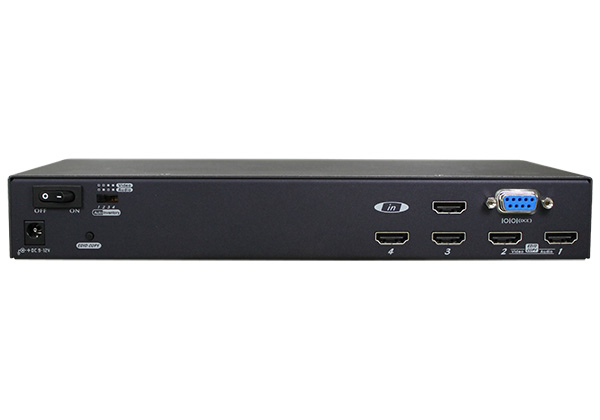

  • 4 Ports Discretionary HDMI Splitter
    VS3D-S1104, 4 Ports Discretionary HDMI Splitter, is one of the most outstanding 3D video splitters. Users can broadcast one HDMI source to one or multiple HDMI displays. That is, the unit can individually turn ON/ OFF AV signal per port via push button, IR remote controller, and serial RS232.
    Q'ty :
  • DisplayPort Switch with Audio
    VSPA-S401, 4 Ports DisplayPort Switch with Audio, is 4 ports DisplayPort Video Switch and allows users to switch between 4 DisplayPort+Audio sources and then delivers the selected video stream to one DisplayPort+Audio output device.
    Q'ty :

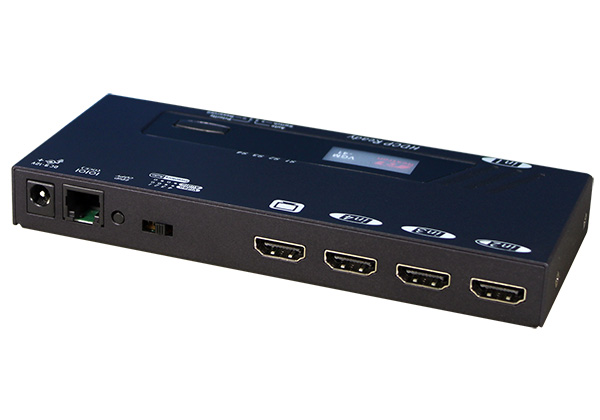

  • HDMI Switch
    HDMI Switch, VGM-S41 allows users to switch between 4 HDMI sources and then delivers the selected video stream to one HDMI output device (Monitor/ Projector). You can select the desired input source via the IR remote control within the range of 5 meters or push button located on the switch.
    Q'ty :
  • HDMI Switcher
    HDMI Switcher, VGM-21 allows users to switch between 2 HDMI sources and then delivers the selected video stream to one HDMI output device (Monitor/ Projector). You can select the desired input source via push button located on the switch.
    Q'ty :
  • VGA Matrix with Audio
    XVA-G1608, VGA Matrix with Audio, is one of the most prominent products with Stereo Audio that can route multiple VGA and audio sources to multiple VGA displays (projectors, monitors, and so on) and speakers. It provides you to demonstrate the same image from one PC to all monitors or images from different PCs to different monitors. Multi-controlled functions include front panel buttons with LED indicators and buzzer sound confirmation, IR Remote, and serial control allowing you to operate the system easily and effortlessly. In this way, it utterly discards the need to frequently move around video input and output cables.
    Q'ty :
  • VGA Matrix
    XVA-G0808 8x8 VGA Matrix is one of the most prominent products with Stereo Audio that can route multiple VGA and audio sources to multiple VGA displays (projectors, monitors, and so on) and speakers. It provides you to demonstrate the same image from one PC to all monitors or images from different PCs to different monitors. Multi-controlled functions include front panel buttons with LED indicators and buzzer sound confirmation, IR Remote, and serial control allowing you to operate the system easily and effortlessly. In this way, it utterly discards the need to frequently move around video input and output cables.
    Q'ty :
  • 4x4 VGA Matrix
    XVA-404, 4x4 VGA Matrix, is one of the most prominent products with Stereo Audio that can route 4 VGA and audio sources to 4 VGA displays (projectors, monitors, and so on) and speakers. It provides you to demonstrate the same image from one PC to all monitors or images from different PCs to different monitors. Multi-controlled functions include front panel buttons with LED indicators and buzzer sound confirmation, IR remote and Serial control allowing you to operate the system easily and effortlessly.
    Q'ty :

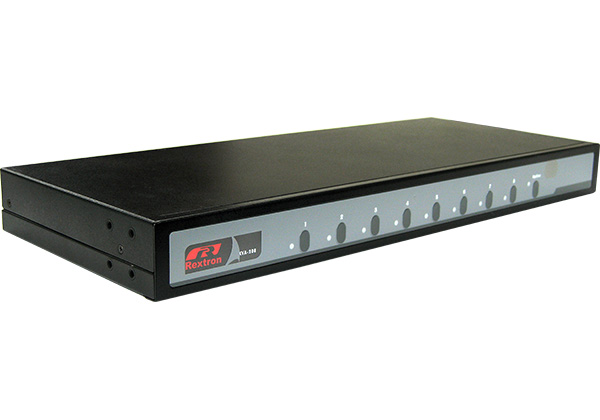

  • 2x8 VGA Matrix
    XVA-208, 2x8 VGA Matrix, is one of the most prominent products with Stereo Audio that can route 2 VGA and audio sources to 8 VGA displays (projectors, monitors, and so on) and speakers. It provides you to demonstrate the same image from one PC to all monitors or images from different PCs to different monitors.
    Q'ty :
  • 2x2 VGA Matrix
    XVA-202, 2x2 VGA Matrix, is one of the most prominent products with Stereo Audio that can route 2 VGA and audio sources to 2 VGA displays (projectors, monitors, and so on) and speakers. It provides you to demonstrate the same image from one PC to all monitors or images from different PCs to different monitors. Multi-controlled functions include front panel buttons with LED indicators and buzzer sound confirmation, IR Remote, and serial control allowing you to operate the system easily and effortlessly. In this way, it utterly discards the need to frequently move around video input and output cables.
    Q'ty :
  • DisplayPort and HDMI Switch Splitter
    VSPM-212 2x2 Hybrid DisplayPort and HDMI Switch Splitter allows users to switch between DP/ HDMI sources and then delivers the selected video stream to 2 HDMI output devices (Monitor/ Projector). You can select the desired input source(s) via the push button located on the switch.
    Q'ty :
  • Video Switch with ADC Converter
    VSAVM-021, Video Switch with ADC Converter, allows users to quickly and easily share HDMI/ VGA sources and display the video contents to one output device (HDMI Monitor or Projector). The video switching can be simply achieved by button pressing. Unique Alt/Shift buttons support Screen Shift Mode for VGA signal horizontal position adjustment.
    Q'ty :
  • HDMI VGA Switcher
    VSAMV-A021, HDMI VGA Switcher, allows users to quickly and easily share HDMI/ VGA sources and display the video contents to one output device (VGA Monitor/ Projector). The video switching can be simply achieved by button pressing. Auto-switching / input priority setting function forces the Input source selection based on the priority level.
    Q'ty :

How to Choose A Video Switch :

Video Switch may have following features that may be required in different applications :

  1. Resolution Supported by The Video Switch : The higher the resolution, the finer can the image be. In most cases, such as office / surveillance, 1080P will be sufficient for a video switch. However, in the cases of digital signage or those cases require large screen, video switch of 4K resolution should be applied for proper PPI ( pixel-per-inch ).
  2. Video Interface Supported by The Video Switch : Selection of video interface of the video switch is largely dependent on what the sources provided. For most video players, HDMI should be appropriate. However, for computers, user should consider DisplayPort or DVI in the cases HDMI outputs are used for control console purpose.
  3. Control Interfaces of The Video Switch : The native control interface of the video switch may be button control. If users want to control the switching remotely, IR control might be a required feature. If the video switch is to be incorporated into the environment control system, Serial RS232 control will be a must. For the playback of 4K content, HDCP control may play an important role.
  4. Video Scaling Function of The Video Switch : There are 2 kinds of video scaling topologies, one is to simply duplicate existing pixel, the other is to process the video with linear interpolation algorithm. If the video switch is expected to output higher quality up-scaled video, the linear interpolation method should be applied. The video scaling engine could be costly based on the complexity of interpolation algorithm.
  5. PIP/PBP Mixing of The Video Switch : Traditionally, PIP/PBP functions are only provided by the display itself. In nowadays, such function may be provided by video switch so that some displays without PIP/PBP can enjoy such functions.

Rextron’s professional video switches, splitters, video matrixes, and video scalers support a variety of interfaces like VGA, DVI, HDMI, and DisplayPort. Our products are reliable solutions, easy to use, most models feature Auto EDID or EDID learning and HDCP compliant, automatically manages EDID between video sources and displays. It is the best solution for a variety of AV integration.
