VGA KVM Switch LED Console Drawer Module with USB, PS/2, OSD

Product Name : VGA KVM Switch LED Console Drawer Module with USB, PS/2, OSD

Product No : IUM-116D

Cascade configuration expands system capability
Auto-scan automatically selects computers sequentially
Password security locks computer from unauthorized access
Gains complete control with easy-to-use OSD interface
Hotkey functions allow easy computer access
Plug-n-play system configuration
Cascadable to all 19 rack mountable PS/2 KVM Switches
Supports computers with either PS/2 or USB interface
Supports Sun servers, HP servers, and Mac

Add to Compare

Q'ty :

Inquiry

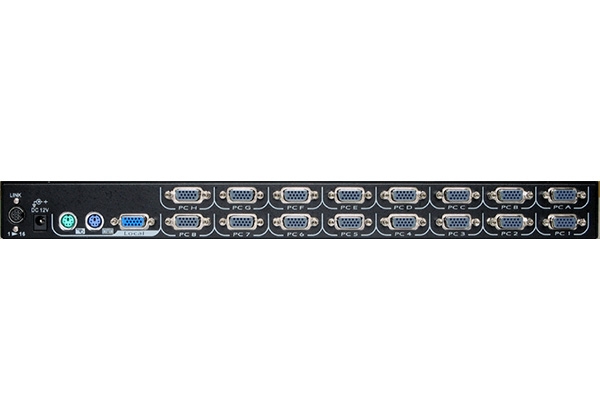

IUM-116D is a 16 Port USB+PS/2 KVM Module with OSD with 1U height, which designed for the integration with Rextron 1U console drawers, Max. supports 1920 x 1080, 1920 x 1200, 2048 x 1152 resolution, built-in OSD, USB & PS/2 port, Max. allows controlling 136 USB & PS/2 servers or PCs from a single console through cascade operation.

IUM-116D is built-in OSD and unique C-36 connector, guide the user to finish the initial setup step by step, and the user could install with Rextron 15 inches or 17 inches LCD Console Drawer.

Cascade configuration expands system capability
Auto-scan automatically selects computers sequentially
Supports Microsoft IntelliMouse (Pro)
Supports both PS/2 and serial mouse
Assigns individual computers with unique and meaningful names.
Identifies and selects computers by the names
Programmable scan filters unused computers
Stores system settings and name entries to non-volatile memory
Password security locks computer from unauthorized access
Gains complete control with easy-to-use OSD interface
Hotkey functions allow easy computer access
Keyboard states automatically saved and restored when switching computers
Operating system independent, transparent to all applications
Plug-n-play system configuration
DDC2B compatible
Supports optional multimedia module for microphones and stereo speakers
Cascadable to all 19 rack mountable PS/2 KVM Switches
Special 3-in-1 cables save spaces and offer the most flexibility
16-port model is only 1U in height
Supports computers with either PS/2 or USB interface
Supports Sun servers, HP servers, and Mac

Model Name	IUM-116D
Input Port	VGA x 16 (Grey)
Output Port	C-36 PS/2 x 2 VGA x 1
Video Resolution (Max.)	1920 x 1440, DDC2B
LCD KVM drawer connector	C-36
Auto-Scan Interval	3, 8, 15, 30 Seconds
Security Control	4-Character Password Per CPU
Applicable to computer	PS/2 PC, USB PC, USB-Sun, USB-Mac
On-Screen Display (OSD)	Yes
Max Cascade Computers	136
Size	1U
Enclosure	Metal
H x W x D (mm)	40 x 404 x 114
Weight (g)	XXX
