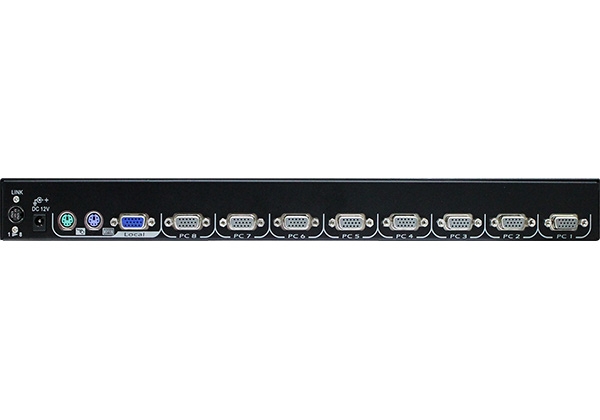

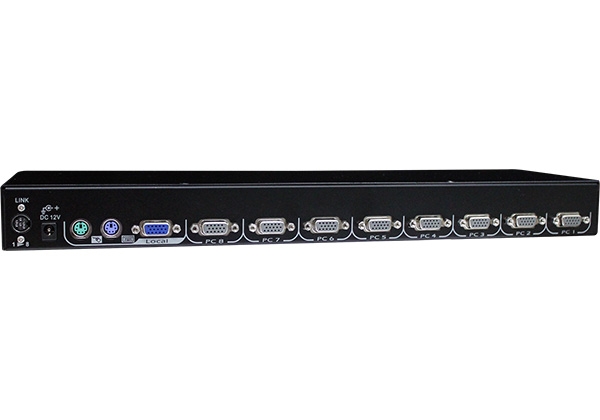

VGA KVM Switch LED Console Drawer Module with USB, PS/2, OSD

Product Name : VGA KVM Switch LED Console Drawer Module with USB, PS/2, OSD

Product No : IUM-2108D

Manage multiple computers from two locations
Cascade configuration expands system capability
Assigns individual computers with unique and meaningful names.
Password security locks computer from unauthorized access
Gains complete control with easy-to-use OSD interface
Hotkey functions allow easy computer access
Special 3-in-1 cables save spaces and offer the most flexibility
16-port model is only 1U in height
Supports computers with either PS/2 or USB interface
Supports Sun servers, HP servers, and Mac

Add to Compare

Q'ty :

Inquiry

IUM-2108D is an 8 Port VGA USB + PS/2 KVM Console Drawer Module with OSD (Two-Access)with 1U height, which designed for the integration with Rextron 1U console drawers, Max. supports 1920 x 1080, 1920 x 1200, 2048 x 1152 resolution, built-in OSD, USB & PS/2 port, Max. allows controlling 64 USB & PS/2 servers or PCs from two consoles through cascade operation.

Cascade configuration expands system capability
Auto-scan automatically selects computers sequentially
Supports Microsoft IntelliMouse (Pro)
Supports both PS/2 and serial mouse
Assigns individual computers with unique and meaningful names.
Identifies and selects computers by the names
Programmable scan filters unused computers
Stores system settings and name entries to non-volatile memory
Password security locks computer from unauthorized access
Gains complete control with easy-to-use OSD interface
Hotkey functions allow easy computer access
Keyboard states automatically saved and restored when switching computers
Operating system independent, transparent to all applications
Plug-n-play system configuration
DDC2B compatible
Supports optional multimedia module for microphones and stereo speakers
Compatible to all 19 inches rack-mountable PS/2 KVM Switches
Special 3-in-1 cables save spaces and offer the most flexibility
Supports computers with either PS/2 or USB interface
Supports Sun servers, HP servers and Mac servers

Manage multiple computers from two locations
Cascade configuration expands system capability
Auto-scan automatically selects computers sequentially
Assigns individual computers with unique and meaningful names.
Identifies and selects computers by the names
Programmable scan filters unused computers
Stores system settings and name entries to non-volatile memory
Password security locks computer from unauthorized access
Gains complete control with easy-to-use OSD interface
Hotkey functions allow easy computer access
Keyboard states automatically saved and restored when switching computers
Operating system independent, transparent to all applications
Plug-n-play system configuration
DDC2B compatible
Supports optional multimedia module for microphones and stereo speakers
Cascadable to all 19 rack mountable PS/2 KVM Switches
Special 3-in-1 cables save spaces and offer the most flexibility
16-port model is only 1U in height
Supports computers with either PS/2 or USB interface
Supports Sun servers, HP servers, and Mac

Model Name	IUM-2108D
Input Port	VGA x 8 (Grey)
Output Port	C-36 VGA x 1 PS/2 x 2 (Keyboard & Ｍouse)
Video Resolution (Max.)	1920 x 1440, DDC2B
LCD KVM drawer connector	C-36
Applicable to computer	PS/2 PC, USB PC, USB-Sun, USB-Mac
Size	1U
Enclosure	Metal
Power Supply	DC 12V
H x W x D (mm)	44 x 404 x 114
Weight (g)	XXX
