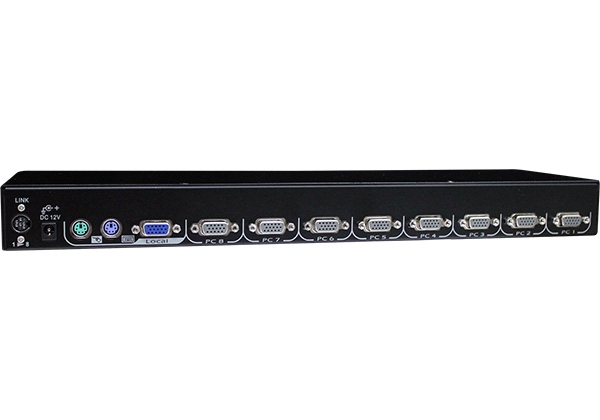

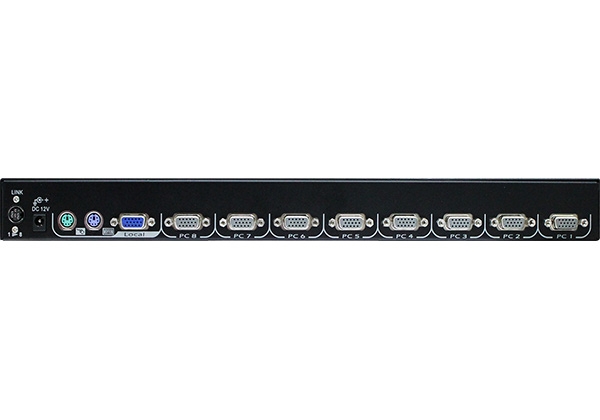

Product Name : VGA KVM Switch LED Console Drawer Module with USB, PS/2, OSD
Product No : IUM-108D
Read More
Product Description
  • Cascade configuration expands system capability
  • Auto-scan automatically selects computers sequentially
  • Password security locks computer from unauthorized access
  • Gains complete control with easy-to-use OSD interface
  • Hotkey functions allow easy computer access
  • Plug-n-play system configuration
  • Cascadable to all 19 rack mountable PS/2 KVM Switches
  • Supports computers with either PS/2 or USB interface
  • Supports Sun servers, HP servers, and Mac
  • USB HID
  • Hotkey Control
IUM-108D is an 8 Port USB+PS/2 KVM Module with OSD & 1U height, which designed for the integration with Rextron 1U console drawers, Max. supports 1920 x 1080, 1920 x 1200, 2048 x 1152 resolution, built-in OSD, USB & PS/2 port, Max. allows controlling 64 USB & PS/2 servers or PCs from a single console through cascade operation.

  • Cascade configuration expands system capability
  • Auto-scan automatically selects computers sequentially
  • Supports Microsoft IntelliMouse (Pro)
  • Supports both PS/2 and serial mouse
  • Assigns individual computers with unique and meaningful names.
  • Identifies and selects computers by the names
  • Programmable scan filters unused computers
  • Stores system settings and name entries to non-volatile memory
  • Password security locks computer from unauthorized access
  • Gains complete control with easy-to-use OSD interface
  • Hotkey functions allow easy computer access
  • Keyboard states automatically saved and restored when switching computers
  • Operating system independent, transparent to all applications
  • Plug-n-play system configuration
  • DDC2B compatible
  • Supports optional multimedia module for microphones and stereo speakers
  • Compatible to all 19 inches rack mountable PS/2 KVM Switches
  • Special 3-in-1 cables save spaces and offer the most flexibility
  • Supports computers with either PS/2 or USB interface
  • Supports Sun servers, HP servers and Mac servers
  • Cascade configuration expands system capability
  • Auto-scan automatically selects computers sequentially
  • Supports Microsoft IntelliMouse (Pro)
  • Supports both PS/2 and serial mouse
  • Assigns individual computers with unique and meaningful names.
  • Gains complete control with easy-to-use OSD interface
  • Hotkey functions allow easy computer access
  • Keyboard states automatically saved and restored when switching computers
  • Operating system independent, transparent to all applications
  • Plug-n-play system configuration
  • DDC2B compatible
  • Supports optional multimedia module for microphones and stereo speakers
  • Cascadable to all 19 rack mountable PS/2 KVM Switches
  • Special 3-in-1 cables save spaces and offer the most flexibility
  • 16-port model is only 1U in height
  • Supports computers with either PS/2 or USB interface
  • Supports Sun servers, HP servers, and Mac

Model Name

IUM-108D

  Input Port

  VGA x 8 (Grey)

  Output Port

  C-36
  PS/2 x 2
  VGA x 1

  Video Resolution (Max.)

  1920 x 1440, DDC2B

  LCD KVM drawer connector

  C-36

  Auto-Scan Interval

  3, 8, 15, 30 Seconds

  Security Control

  4-Character Password Per CPU

  Applicable to computer

  PS/2 PC,  USB PC, USB-Sun, USB-Mac

  On-Screen Display (OSD)

  Yes

  Max Cascade Computers

  64

  Size

  1U

  Enclosure

  Metal

  H x W x D (mm)

  40 x 404 x 114

  Weight (g)

XXX
