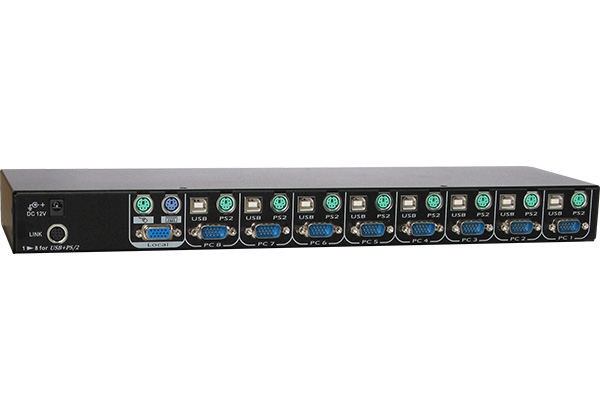

Product Name : Integra KVM Module, Hybrid VGA KVM Switch, USB+PS2
Product No : IGM-108D
Read More
Product Description
  • Supports both PS/2 and serial mouse
  • Uses standard connectors for computer connection
  • Auto-scan automatically selects computers sequentially
  • Assign computers with unique and meaningful names
  • Identify and select computers by the names
  • Store system settings and name entries to non-volatile memory
  • Password security locks computer from unauthorized access
  • Gain complete control with easy-to-use OSD interface
  • Hotkey functions allow easy computer access
  • USB HID
  • Hotkey Control
Integra KVM Module, Hybrid VGA KVM Switch, USB+PS2, IGM-108D

The combination of LCD Console Drawer and Integra KVM Switch Module offers the latest and the most efficient way of controlling server rooms and multiple computers. Many models of Integra KVM Switch Modules are available to control from 8 to 136 servers by the LCD Console Drawer or another set of console 100ft (30m) away; it is the ultimate tool for server management.

The Integra KVM Switch Module IGM-108D can operate 8 computers by a single set of Keyboard/Monitor/Mouse efficiently managing computer in sever room where the space is at a premium. The management capability can be easily expanded up to 64 servers/computers through multiple KVM Switch Units cascading. The compatibility of USB and PS/2 PC connections increases the flexibility with existing devices selections.

Hybrid VGA KVM Switch, IGM-108D contains a list of features you need for controlling computers or servers locally, which include hotkey control, computer selection, status indication, auto scan, and much more. For secured connection and space saving, all Hybrid VGA KVM Switch Modules require just one HDB15 & one USB/PS2 connectors for each computer connection.

For Integra KVM Switch Module with built-in OSD control, you can name your computers, switch to a computer from a list, set with easy-to-use menus, and view the name of the selected computer on-screen with programmable time interval. The OSD displays the system status throughout operation. A computer may be selected by pressing the push button directly, by issuing hotkey commands or by activating the OSD window.

The KVM Switch Module in cascade ( Master / Slave ) Configuration
For applications with a large number of computers, USB+PS2 KVM Switch, IGM-108D supports cascading architecture in a master/slave configuration to manage even more computers. You can connect a second level of one or more KVM Switch Modules to a Master unit. Cascade configuration expands system ability, allowing you to select computers connected to the Master or Slaves. There is only one Master that connects to the LCD Console directly operated by a user. Once connected, the KVM Switch Modules automatically configure themselves to either Master or Slave. Slaves of different KVM Switch Modules can be mixed in cascade configuration.
● Supports computers with either PS/2 or USB interface
● Gains complete control with easy-to-use OSD interface
● Hotkey functions allow easy computer access
● Special 3-in-1 KVM cables save spaces and offer the most flexibility
● Assigns individual computers with unique and meaningful names.
● Identify and select computers by the names
● Auto-scan automatically selects computers sequentially
● Supports Microsoft IntelliMouse (Pro)
● Supports both PS/2 and serial mouse
● Keyboard states automatically saved and restored when switching computers
● Operating system independent, transparent to all applications
● Plug-n-play system configuration
● DDC2B compatible
● Cascade configuration expands system capability
● Cascadable to all 19 rack mountable PS/2 KVM Switches
● Supports Sun servers, HP servers

Model Name

IGM-108D

  Input Port

  VGA x 8
  USB Type B x 8
  PS/2 x 8

  Output Port

  C-36
  VGA x 1
  PS/2 x 2 (Keyboard &
ouse)

  Video Resolution (Max.)

  1920 x 1440, DDC2B

  LCD KVM drawer connector

  C-36

  Applicable to computer

  PS/2 PC, USB PC, USB-Sun, USB-Mac

  Size

  1U

  Enclosure

  Metal

  Power Supply

  DC 12V

  H x W x D (mm)

  44 x 404 x 114

  Weight (g)

  X
