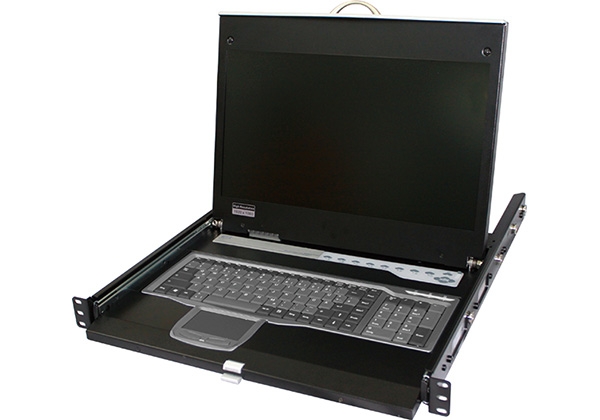

Product Name : 17.3 inch LED Console Drawer
Product No : HWKSF-10
Read More
Product Description
  • Modularized KVM switch design.
  • Flip-open LCD panel supports the resolution of Full HD 1920x1080.
  • For managing computers with PS/2, USB, Mac or Sun interface.
  • For rack cabinet with depth from 20" (50cm) and up (with appropriate Rear bracket & extension kit).
  • Standard 1U rack drawer.

Rextron 1U LCD Console Drawer HWKSF-10 is a keyboard, mouse, 17.3" wide LCD screen, Max. supports up to 1920 x 1080 resolution, and could optionally integrated with 4 / 8 / 16 port VGA or DVI KVM Switch Module for 19” standard rack chassis. This compact design allows the Console Drawer connected with 4 / 8 / 16 port VGA or DVI rack mountable KVM Switch. The Console Drawer is easily installed and minimizes support and maintenance costs, ensure lower cost of ownership. The relevant keyboard, touchpad technology, and easy-to-assembly single user rack mount kit combine to form a high-quality, clever solution built for computers monitoring and management. HWKSF-10 can be used in a variety of IT environments, from computer rooms to large data centers. It is the ideal solution for ASP, ISP, telecommunication companies, and testing rooms.

HWKSF-10 is designed with unique C-36 connector, any KVM switch module could be slid into the rear side of HWKSF-10. The relevant 105 key keyboard, touchpad and KVM switch module could be replaced by users themselves. It is easy for users to upgrade from analog to digital system or system expansion.

The integrated KVM switch modules are available for PS/2, USB interface, and redundant AC power modules available.

  • Modularized KVM switch design.
  • Flip-open LCD panel supports the resolution of Full HD 1920x1080 .
  • For managing computers with PS/2, USB, Mac, or Sun interface.
  • For rack cabinet with depth from 20" (50cm) and up (with appropriate Rear bracket & extension kit).
  • Standard 1U rack drawer.
  • Locking mechanism locks the drawer when pulled out, pushed in, or folded down.
  • Full 105 key, low-profile, sturdy keyboard included.
  • A universal C-36 connector for connection between the console drawer and Integra KVM switch module.
  • User-replaceable keyboard with various languages support
  • User-replaceable touchpad for easy replacement
  • Touchpad with a simulated wheel control
  • Supports Sun keyboard mapping and Mac keyboard mapping.
  • Ultra-sturdy, tilt-free, two-piece Rear Bracket, and Extension design.

Model Name

 17.3" LCD Console Drawer

HWKSF-10

  Active Display Area (mm)

  381.888 X 214.812 (mm)

  Pixel Pitch (mm)

  0.1989 (H) x 0.1989 (V)

  Resolution

  1920 x 1080

  Display Color

  262K (RGB 6-bit)

  Color Pixel Arrangement

  RGB Vertical Strip

  Display Mode

  Normally White

  Brightness (cd/m2)

  300

  Contrast Ratio

  500:1

  Hot Key Control

  OSD Hot Key

  User Control

  OSD Control (Auto Saving)

  Input Signal

  RGB Analog, H/V Separate

  Plug-n-Play VESA

  VESA DDC 2B

  Power Consumption

  13.2W

  Viewing Angle(Typical)

  -70~ 70(H)
  -60~ 60(V)

  Power

  Full range, 100V AC to 240V AC

  Approval

  CE, FCC for the Product.
  UL, TUV, CE for Power Supply



proimages/Connection_/Console_Drawer/HWKSF-10.jpg
