Product Name : 19 inch LED Console Drawer
Product No : HKNE-10
Read More
Product Description
  • Modularized KVM switch design.
  • Flip-open LCD panel supports resolution 1280x1024.
  • 19” TFT-LCD with LED Backlight
  • For managing computers with PS/2, USB, or Sun interface.
  • Standard 19" 1U rack drawer.
  • Supports Sun keyboard mapping and Mac keyboard mapping.

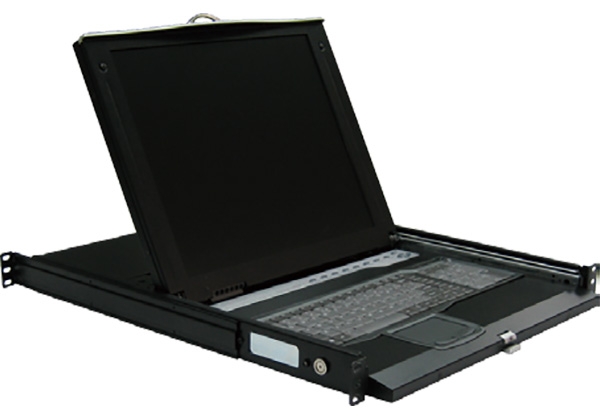

19 Inch LCD Console Drawer with replaceable Keyboard and Touch Pad, HKNE-10

Rextron Server Room Rack mount LCD console drawers are designed for applications where space is at a premium or the CRT monitors are undesirable. LCD Console, HKNE-110, Integra Pro series, with the ergonomic design and stylish shape, are dedicated design for server management. The Unit combines a keyboard, mouse, 19” LCD panel with Anti-Glare treatment ,and an Integra KVM Module housed in an industry standard 17” / 19" / 17.3” 1U-height rack drawer that saves you up to 1/3 of valuable space from a rack cabinet. The extra heavy duty drawer enhanced the durability. Better yet, when the unit is cascaded (stacked) with other Integra KVM Modules to increase server management capacity, you save even more!



LCD Console, HKNE-110, can be pulled out for operation from the rack and latched in the extended position. When not in use, the display can be folded down, locked and secured while pushed in. With different rear bracket & extension kit, the LCD Console Drawer can be mounted on rack cabinet of various depths.

LCD Drawer KVM Console

When a 1U-height Integra KVM switch module (purchased separately) is slid into the rear side of the LCD console, the entire setup takes 1U space of a rack-cabinet. There are a variety of different 1U-height KVM switch function modules available.

  • Modularized KVM switch design.
  • Flip-open LCD panel supports resolution 1280x1024.
  • 19” TFT-LCD with LED Backlight
  • For managing computers with PS/2, USB, or Sun interface.
  • For rack cabinet with depth from 20" (50cm) and up (with appropriate Rear bracket & extension kit).
  • Standard 1U rack drawer.
  • Locking mechanism locks the drawer when pulled out, pushed in, or folded down.
  • Full 105 key, low-profile, sturdy keyboard included.
  • A universal C-36 connector for connection between the console drawer and Integra KVM switch module.

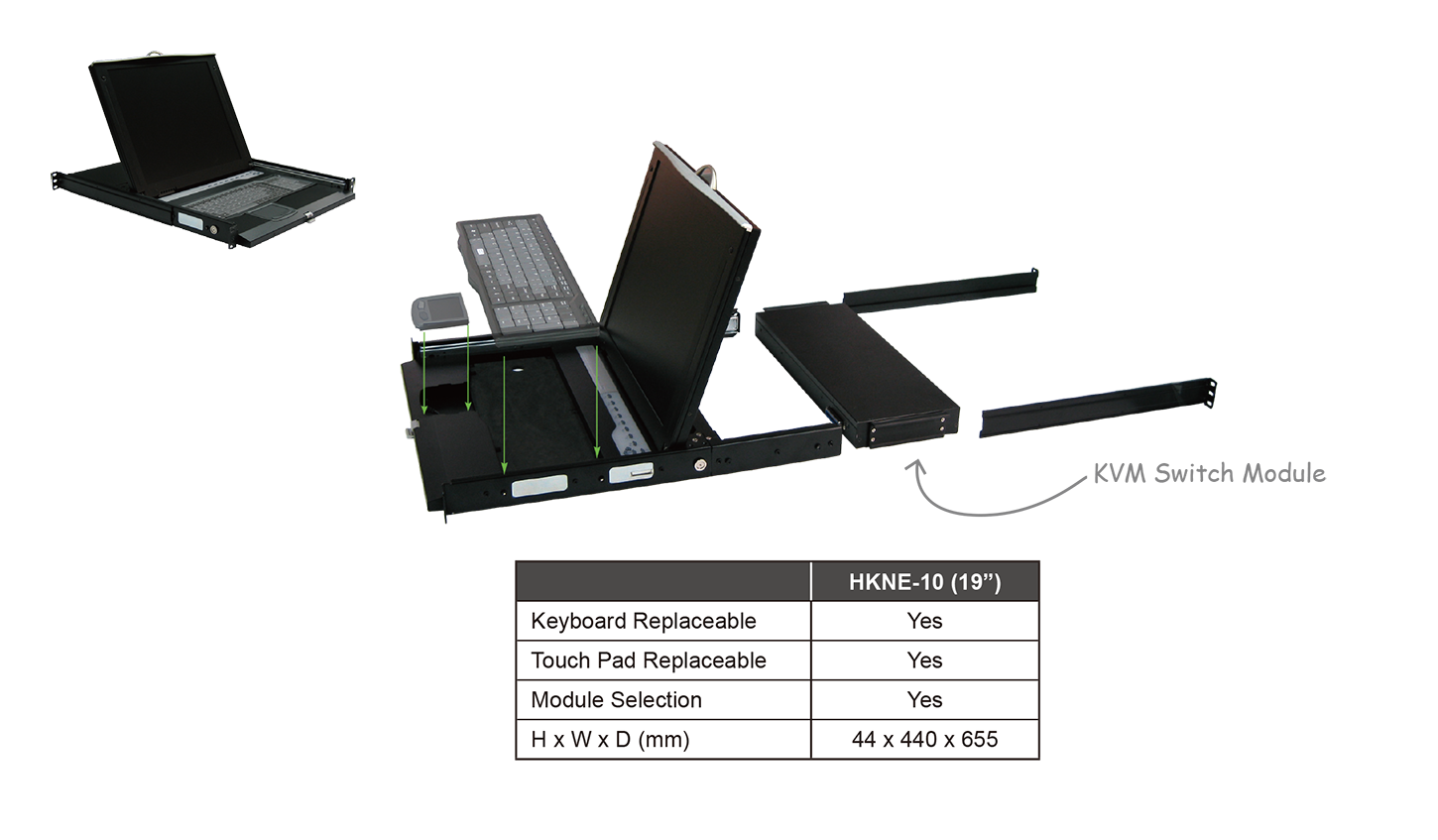

  • User-replaceable keyboard with various languages support
  • User-replaceable touchpad for easy replacement
  • Touchpad with a simulated wheel control
  • Supports Sun keyboard mapping and Mac keyboard mapping.
  • Ultra-sturdy, tilt-free, two-piece Rear Bracket and Extension design.

Model Name

19 TFT-LCD with LED Backlight

HKNE-10

  Active Display Area (mm)

  376.32 (H) x 301.056 (V)

  Pixel Pitch (mm)

  0.294(H) x 0.294(V)

  Resolution

  1280 x 1024

  Color Pixel Arrangement

  RGB Vertical Strip

  Display Mode

  Normally Black

  Brightness (cd/m^2)

  350 (Center)

  Contrast Ratio (typical)

  1000:1

  Support Color

  16.7M colors
  (RGB 6-bit data+HiFRC data)

  User Control

  OSD Control (Auto Saving)

  Input Signal

  RGB Analog, H/V Separate

  Plug-n-Play VESA

  VESA DDC 2B

  Power Consumption

  20.55W

  Viewing Angle (typical)

  - 85~ 85(H)
  - 80~ 80(V)

  Surface Treatment

  Anti-Glare treatment

  Approval

  CE, FCC for the Product.
  UL, TUV, CE for Power Supply



LCD KVM Console Drawer
