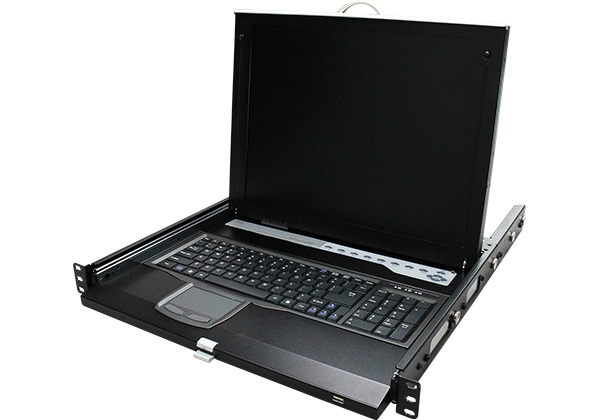

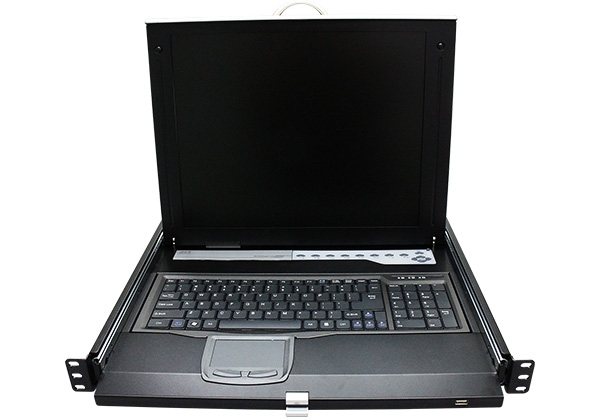

Product Name : 17 inch LED Console Drawer, Enhanced Rotating Mechanism
Product No : HKSH-10
Read More
Product Description
  • Modularized KVM switch design.
  • Flip-open LED panel supports resolution 1280x1024.
  • Backlight LED features less power consumption than the normal LED monitor
  • For managing computers with PS/2, USB, Mac, or Sun interface.
  • Standard 1U rack drawer.
  • Front USB & Enhanced Rotating Mechanism

17 Inch Rackmount LCD Console Drawer with replaceable Keyboard and Touch Pad, HKSH-10

Rextron Server Room Rack mount LCD console drawers are designed for applications where space is at a premium or the CRT monitors are undesirable. Rackmount LCD Console, HKSH-10, Integra Pro series, with the ergonomic design and stylish shape, are dedicated design for server management. The Unit combines a keyboard, mouse, 17.3” FHD LCD panel with Anti-Glare treatment ,and an Integra KVM Module housed in an industry standard 17” / 19" / 17.3” 1U-height rack drawer that saves you up to 1/3 of valuable space from a rack cabinet. The extra heavy duty drawer enhanced the durability. Better yet, when the unit is cascaded (stacked) with other Integra KVM Modules to increase server management capacity, you save even more!

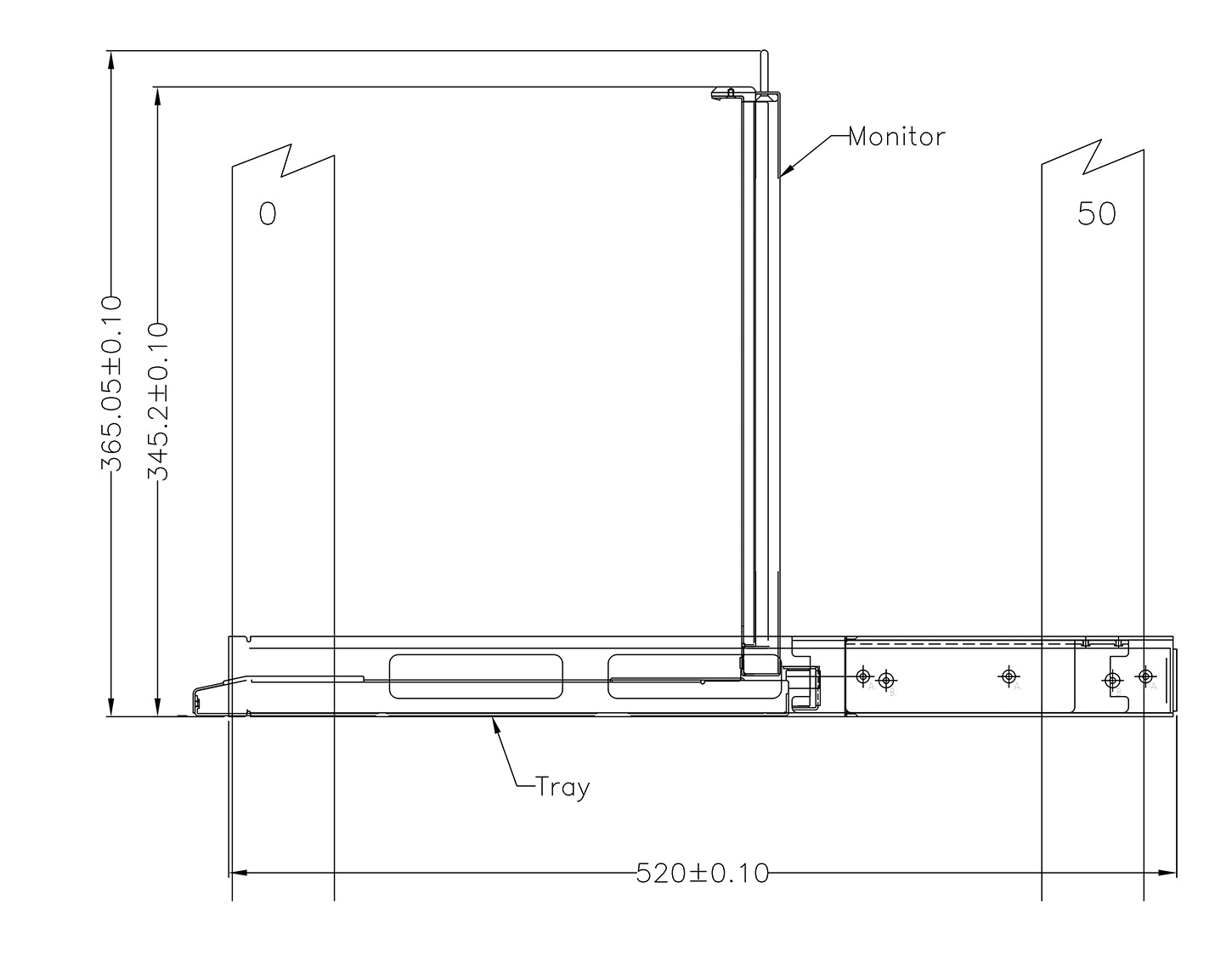

Rackmount LCD Console, HKSH-10, can be pulled out for operation from the rack and latched in the extended position. When not in use, the display can be folded down, locked and secured while pushed in. With different rear bracket & extension kit, the Rackmount LCD Console can be mounted on rack cabinet of various depths.



HKSH-10 is designed with unique C-36 connector, any KVM switch module (purchased separately) could be slid into the rear side of HKSH-10. When a 1U-height Integra KVM switch module is slid into the rear side of the LCD KVM Console, the entire setup takes 1U space of a rack-cabinet. There are a variety of different 1U-height KVM switch function modules available. The unique and convenient USB-HID port designed on the Rackmount LCD Console is especially useful for wired or wireless KB/MS application.


  • Modularized KVM switch design.
  • Flip-open LED panel supports resolution 1280x1024.
  • Backlight LED features less power consumption than the normal LED monitor
  • For managing computers with PS/2, USB, Mac, or Sun interface.

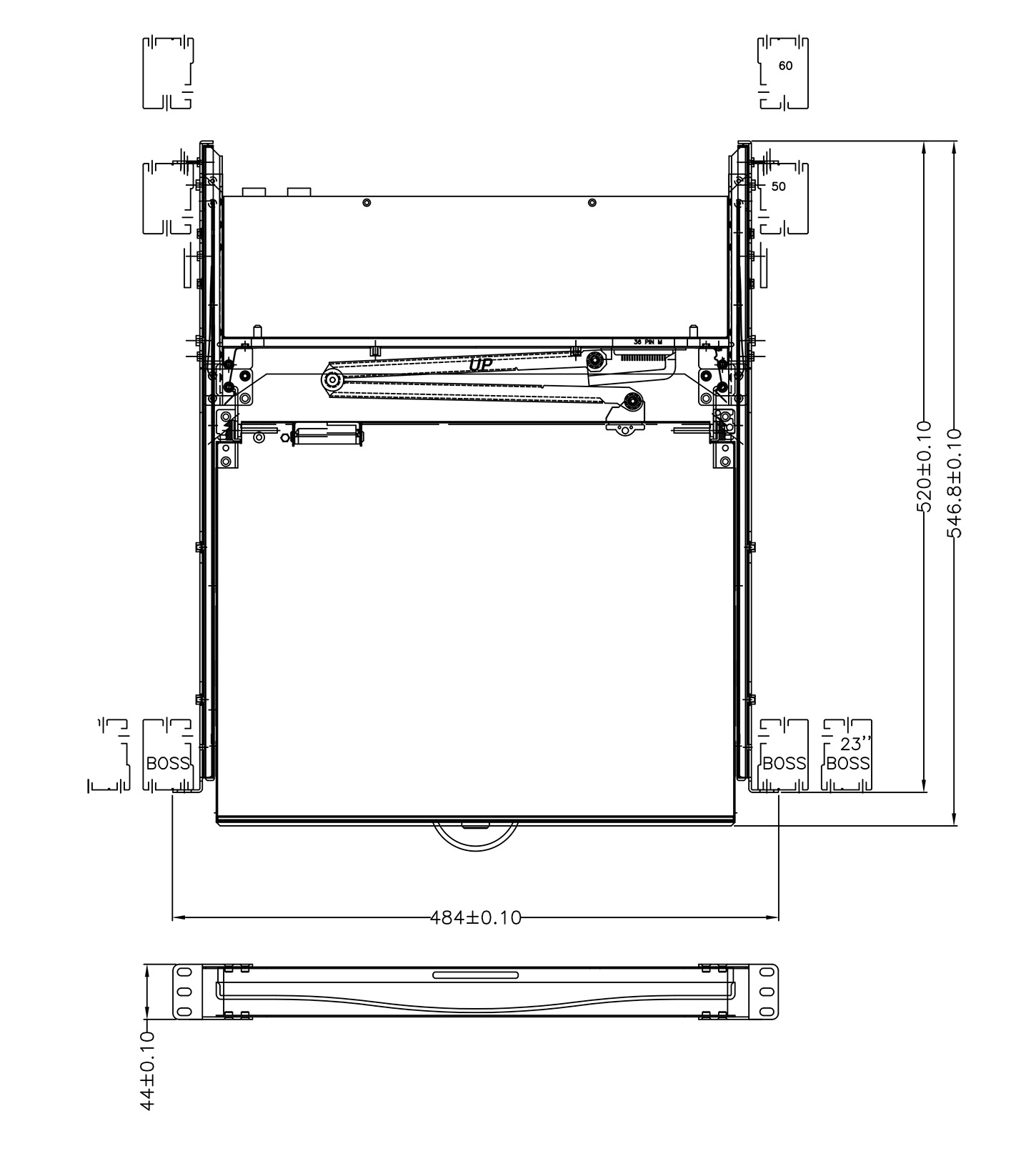

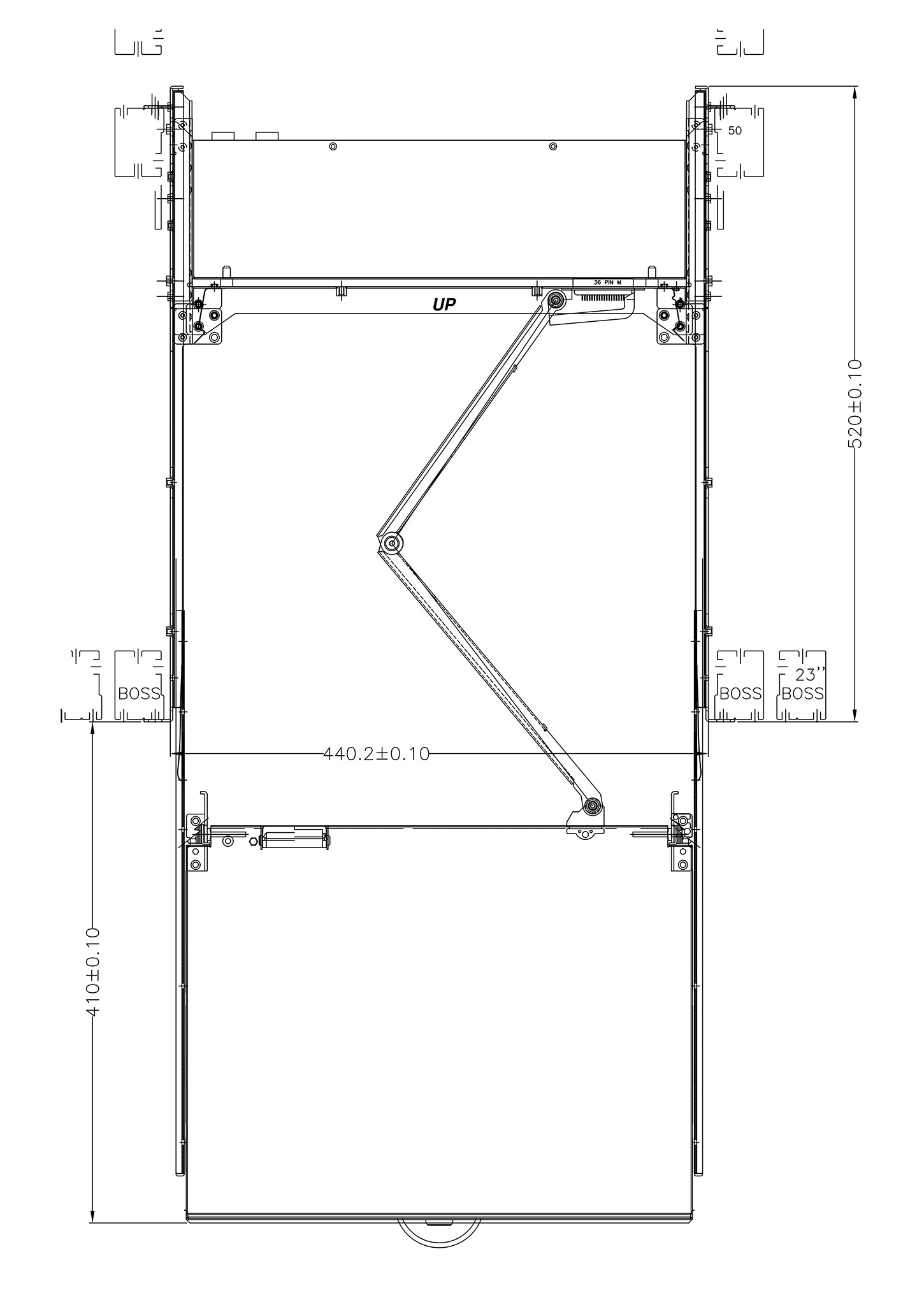

  • For rack cabinet with depth from 20" (50cm) and up (with appropriate Rear bracket & extension kit).
  • Standard 19" 1U rack drawer.
  • Locking mechanism locks the drawer when pulled out, pushed in, or folded down.
  • Full 105 key, low-profile, sturdy keyboard included.
  • A universal C-36 connector for connection between the console drawer and Integra KVM switch module.
  • User-replaceable keyboard with various languages support
  • User-replaceable touchpad for easy replacement
  • Touchpad with a simulated wheel control
  • Supports Sun keyboard mapping and Mac keyboard mapping.
  • Ultra Rigid, tilt-free, two-piece Rear Bracket and Extension design.
  • Front USB & Enhanced Rotating Mechanism

Model Name

 17 LED Panel

HKSH-10

  Front USB Port

  USB HID x 1

  Active Display Area (mm)

  337.92 (H) x 270.336 (V)

  Pixel Pitch (mm)

  0.264(H) x 0.264(V)

  Resolution

  1280 x 1024

  Color Pixel Arrangement

  RGB Vertical Strip

  Display Mode

  Normally White

  View Angle

  170˚ / 160˚

  Brightness (cd/m2)

  250 (Center)

  Contrast Ratio

  1000:1

  Hot Key Control

  OSD Hot Key

  User Control

  OSD Control (Auto Saving)

  Input Signal

  RGB Analog, H/V Separate

  Plug-n-Play VESA

  VESA DDC 2B

  Power Consumption

  13W (w/o Inverter, All white pattern)

  Surface Treatment

  Anti-Glare treatment

  Approval

  CE, FCC for the Product.
  UL, TUV, CE for Power Supply
