2 Ports True 4K DisplayPort Video Switch with Audio, IR, Serial
VKSPA-S6G21

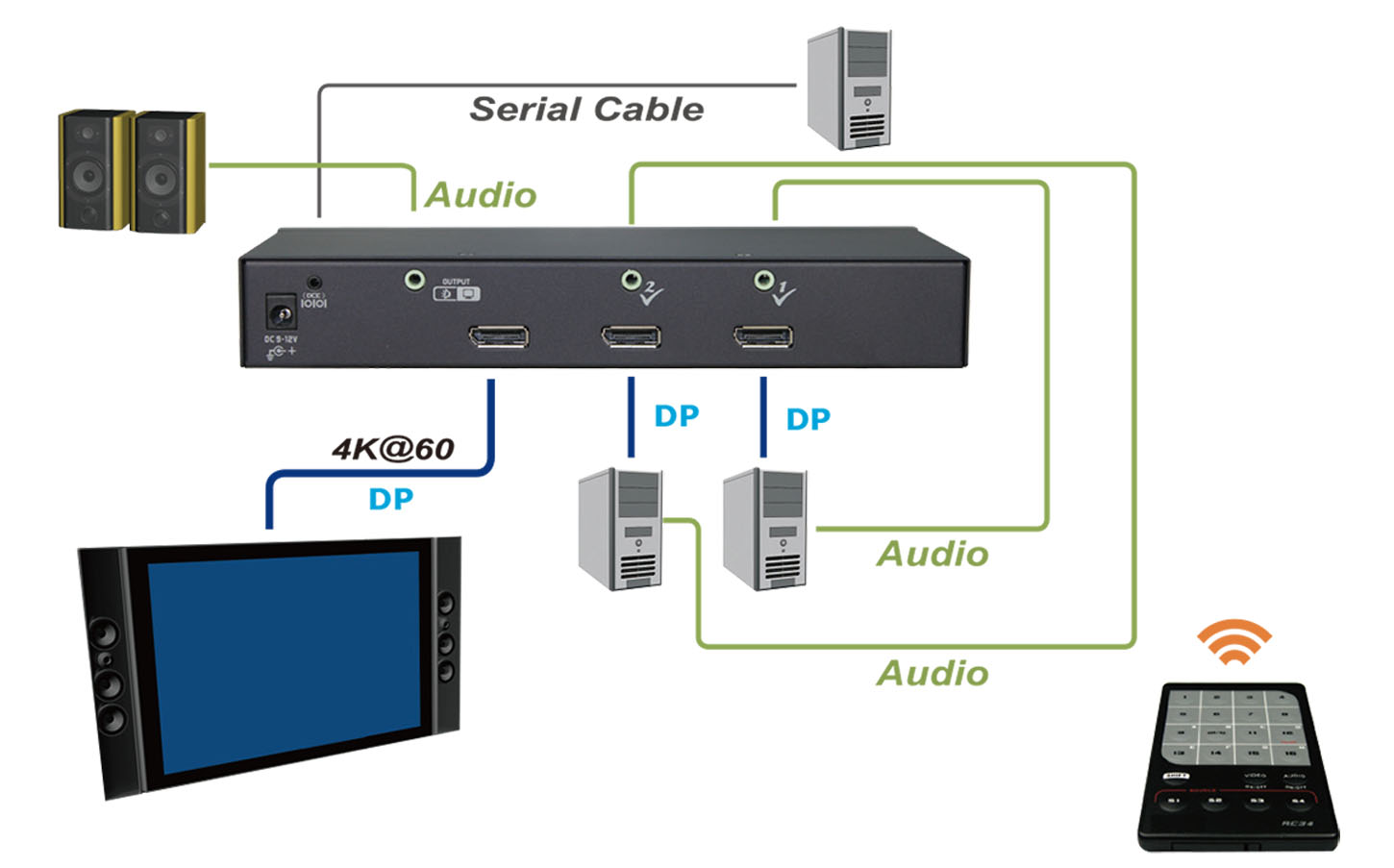

VKSPA-S6G21, 2 Ports True 4K DisplayPort Switch, allows users to switch between 2 DP+3.5mm Audio sources and then delivers the selected AV stream to DP+3.5mm Audio output. 2 Ports DisplayPort Switch EDID Auto learning ensures that every video source is displayed at the optimal resolution and format without any compatibility issue.
VKSPA-S6G21, 2 Ports True 4K DisplayPort Video Switch, supports various ways of control that can be done thru front-panel buttons, RS-232 serial or IR remote control. The RS-232 serial control, built-in 2.5mm jack to DB9 serial interface, provides users easy and friendly operation. There’s also an IR sensor window at the front panel designed with great aesthetic and efficiency to quickly and accurately control this unit.
VKSPA-S6G21, 2 Ports True 4K DisplayPort Video Switch, supports various ways of control that can be done thru front-panel buttons, RS-232 serial or IR remote control. The RS-232 serial control, built-in 2.5mm jack to DB9 serial interface, provides users easy and friendly operation. There’s also an IR sensor window at the front panel designed with great aesthetic and efficiency to quickly and accurately control this unit.
- Select 1 DisplayPort + Audio from 2 Different DisplayPort + Audio Sources
- Support Resolution up to 4K/18G, 3840 x 2160 (4:4:4) )
- Provide 3 ways to Control The Unit via (1) Front Panel Push Button (2) IR Remote Control (3) Serial Control
- Accurate and Reliable Reproduction of Digital Video Signals without Attenuation and Distortion
- IR Remote Control
- LED Indicators for Signal Activity Monitoring
- LED Shows The Active Status of Video Input Source
- DP 1.2 and HDCP Compliant
|
Model Name |
VKSPA-S6G21 |
|
Video Resolution (max.) |
4K@60Hz ( 4:4:4 ) |
|
Video Input |
DisplayPort x 2 |
|
Audio In |
3.5 mm Audio Jack x 2 |
|
Video Output |
DisplayPort x 1 |
|
Audio Output |
3.5 mm Audio Jack x 1 |
|
LED Indicator |
Status LED x 1 |
|
IR Control |
IR Sensor ( Front ) |
|
Serial Control |
2.5 mm Jack x 1, RS-232 |
|
Power Supply |
DC 12V |
|
Operation Environment |
0~40°C, Humidity<80% |
|
Storage Temperature |
-20~60°C |
|
Enclosure |
Metal |
|
Dimension H x W x D (mm) |
34 x 220 x 100 |
|
Weight (g) |
700 |
