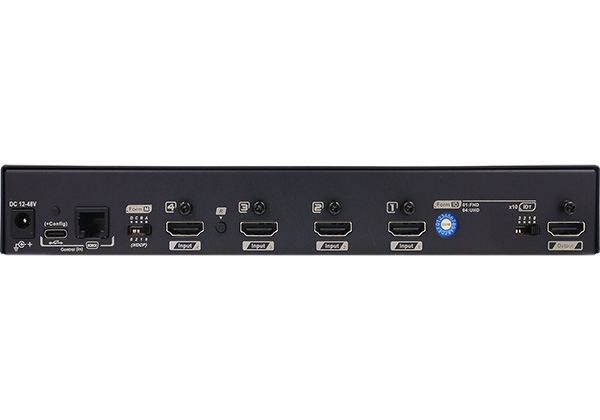

4 Ports True 4K HDMI Seamless Switch with Scaler, Auto Sensing, Serial Control, IR Control, HDCP Management
VQSCM-41
VQSCM-41, 4K HDMI Switcher, enables the switching of 4 HDMI sources and then delivers the selected video stream to one HDMI output device (Monitor/ Projector). You can easily control the unit via the front panel push buttons, IR controller, and serial function. Without plug or re-plug any cables, these convenient solutions provide seamless switching functionality and allow users to enjoy a streamlined and efficient HDMI switching experience.
Enables stable EDID transmission and provides enormous preset EDIDs in memory bank
VQSCM-41 provides 3 extra modes for input source selection including Manual, Auto, and Priority mode. The “Auto-switching / input auto detecting” function always routes the last connecting stream (as first priority) to the output.
Serial Control (RS-232 & Virtual Com)
- Allows Free Routing among 4 Sources and 1 Displays
- 64 Edid Presets Optimizes HDMI 2.0 Video Stability, Preventing Signal Loss and Ensuring Compatibility with 16:9, 21:9, and 32:9 Monitors.
- Special ATC / Medical / Ultrawide Supported Such as 2048x2048 / 1536x2048 / 3440x1440 ...
- Built-in Scaler for 16:9, 21:9, 32:9 Monitors
- 3 Flexible Control Methods :
- Push Buttons
- IR Control
- Serial Control
- Video Blank / Audio Mute : Allows Turning Off the Input HDMI Video or HDMI Audio
- Auto Sensing Switches the Specific Video Output Either to the Latest Inserted Source or the Highest-Priority Source
- Serial Control Facilitates Industrial / Media Applications 8 Baud Rate Selections : 9600~115200bps
- HDCP Management Selects the Proper HDCP Version among HDCP 2.2 / 1.4 / Non-HDCP
- IR Control Support
|
Model Name |
VQSCM-41 |
|
Video Resolution (Max.) |
3840x2160, 2560x1440, 1920x1080 |
|
Video Input |
HDMI 2.0 x 4 |
|
Video Output |
HDMI 2.0 x 1 |
|
Control Methods |
Push Buttons / IR Control / Serial Control / Select Switch |
|
IR Control |
IR Receiver x 1 ( Front ) |
|
Serial Control |
RJ-11 x 1 ( 38400bps ) |
|
Slide Switch |
EDID Mode Switch ( Audio / Video ) x 1 |
|
Push Button |
Input Selection x 1 |
|
HDCP Compliance |
HDCP 2.2 / 1.4 / Non-HDCP |
|
Other Functions |
Video Blank / Audio Mute |
|
Power Supply |
DC 12~48V |
|
Operation Environment |
0~40°C, Humidity<80% |
|
Storage Temperature |
-20~60°C |
|
Enclosure |
Metal |
|
Dimension H x W x D (mm) |
34 x 240 x 160 |
|
Weight (g) |
1055 |
