VGA Skew Corrector, 200M
VSKU-215
RGB Skew Corrector, 200M VGA Extension, VSKU-215
RGB Skew Corrector, VSKU-215, is an RGB skew delay corrector for VGA signal. VGA signals may have RGB run-away issue when applied with long distances. VSKU-215 allows users to adjust the RGB skew for the best image quality.

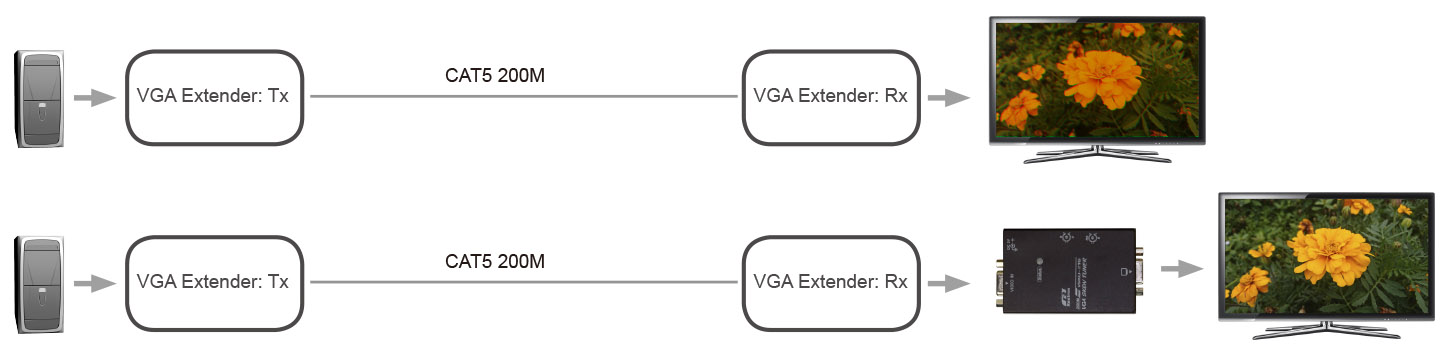

Skew delay extends as the length of the cable increases. RGB Skew Corrector offers perfect skew delay correction. It is designed to correct images with colors that have become skewed or shifted due to lengthy Cat5/ 5e/ 6 cable runs.
VSKU-215 is designed with a compact outlook, using the latest technology to adjust RGB colors by 2 steps only, supports 200M RGB skew correction. Furthermore, it is compatible with all Rextron VGA Extenders.
RGB Skew Corrector, VSKU-215, is an RGB skew delay corrector for VGA signal. VGA signals may have RGB run-away issue when applied with long distances. VSKU-215 allows users to adjust the RGB skew for the best image quality.
Skew delay extends as the length of the cable increases. RGB Skew Corrector offers perfect skew delay correction. It is designed to correct images with colors that have become skewed or shifted due to lengthy Cat5/ 5e/ 6 cable runs.
VSKU-215 is designed with a compact outlook, using the latest technology to adjust RGB colors by 2 steps only, supports 200M RGB skew correction. Furthermore, it is compatible with all Rextron VGA Extenders.
- Compact Size
- Support 200M RGB Skew Correction
- Digitally save settings and memorize the last state
- Unique and excellent technique to adjust RGB colors by only 2 steps
- Improve the skew of each color for the best image integrity
- Economical, durable and dependable
|
Model Name |
VSKU-215 |
|
Video Resolution (Max.) |
1920 x 1080@60Hz (4:4:4) |
|
Video Input |
VGA x 1 |
|
Video Output |
VGA x 1 |
|
LED Indicator |
Video / Status: Multi-Color x 1 |
|
Calibration |
R & G Calibration |
|
RGB Calibration Distance (Max.) |
200M |
|
Power Supply |
DC 5V |
|
Operation Environment |
0~40°C, Humidity<80% |
|
Storage Temperature |
-20~60°C |
|
Enclosure |
Metal |
|
Dimensions H x W x D (mm) |
22 x 51 x 80 |
|
Weight (g) |
125 |
