Multi Touch Video Extender, USB HID HDMI Transmitter and Receiver, CAT6x 4K60@35M, HDCP
SHA1MU-M403
Multi Touch Video Extender, USB HID HDMI Transmitter and Receiver, CAT6x 4K60@35M, HDCP, SHA1MU-M403

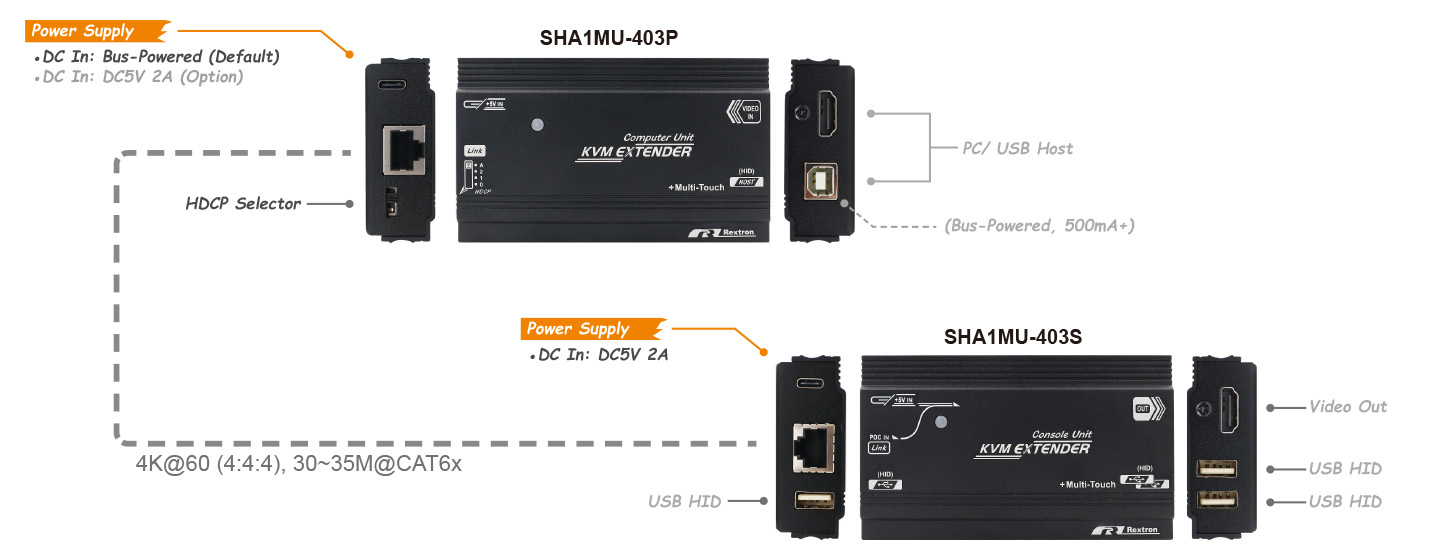

SHA1MU-M403 = SHA1MU-403P (Tx, PC/ USB Host) + SHA1MU-403S (Rx, Console/ USB Device)
The HDMI/USB KVM touch extender SHA1MU-M403 consists of an HDMI/USB transmitter SHA1MU-403P (USB host) and an HDMI/USB receiver SHA1MU-403S (USB device). It extends the HDMI video and USB HID signals up to 35 meters at 4K@60 4:4:4 via a single category cable in a point-to-point configuration.
The HDMI/USB KVM touch extender SHA1MU-M403 consists of an HDMI/USB transmitter SHA1MU-403P (USB host) and an HDMI/USB receiver SHA1MU-403S (USB device). It extends the HDMI video and USB HID signals up to 35 meters at 4K@60 4:4:4 via a single category cable in a point-to-point configuration.
Support USB HID Multi-Touch Function

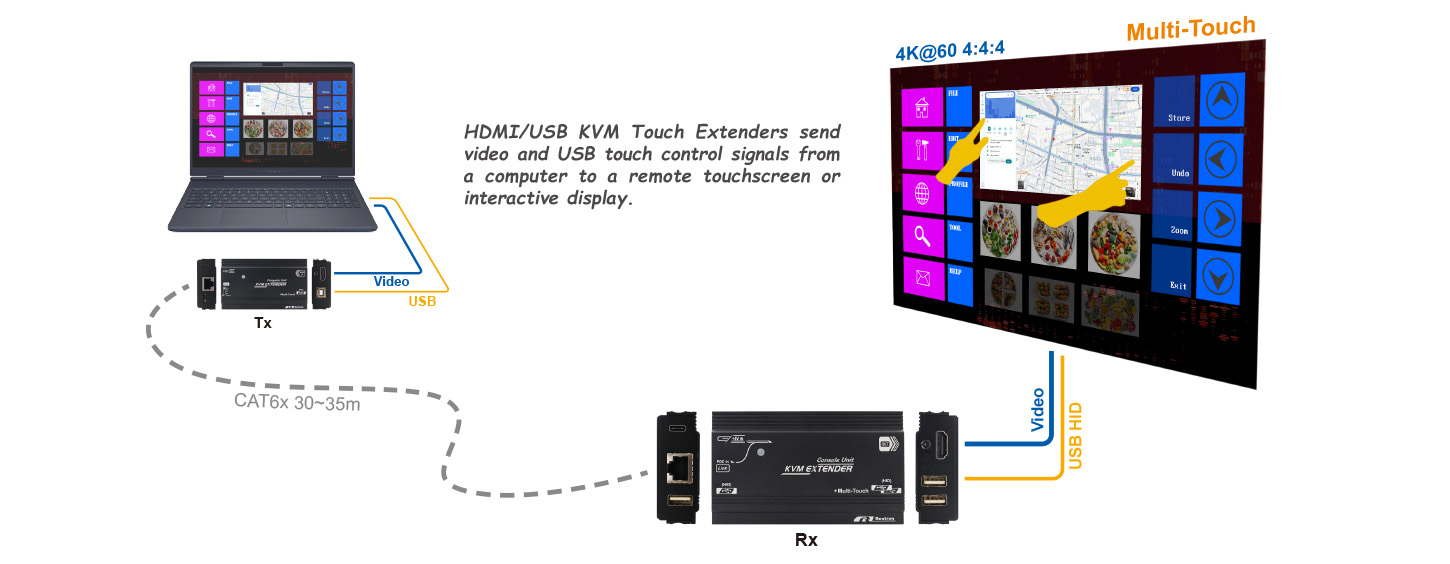

The Multi Touch Video Extender SHA1MU-M403 supports USB HID multi-touch functions and can send the video and USB touch control signals from a computer to a remote touchscreen or interactive display, enabling gestures such as button tapping, image zooming, and rotating your window contents, largely replacing single-touch functionality in modern devices. It is suitable for applications such as interactive whiteboards and digital kiosks in the education sector.
USB-HID supports smooth multi-touch interactive control with no visible latency, designed specifically for industrial control rooms, interactive digital signage, and remote touch panels. Application scenarios include:
● Touch-interactive Display
● Interactive Whiteboard
● Smartboard
● Multi-touch Kiosk
LED Indicator
LED Indicator
The Multi-color LED indicators on the transmitter and receiver unit can display the Tx-Rx connection status, Video input status, and Video output status.
Special Design for HDCP Management
Special Design for HDCP Management
Exclusive HDCP slide switch on the rear panel allows users to select the 4 preset HDCP modes:
Mode-1: Auto mode allows HDCP 2.2 or HDCP 1.4 content pass-thru
Mode-2: NONE mode allows non-HDCP content to be played
Mode-3: This mode allows HDCP 1.4 content to be licensed
Mode-4: Allows HDCP 2.2 content to be licensed
The Rextron Multi Touch Video Extender SHA1MU-M403 is compatible with Windows, Mac, and Linux operating systems. It consists of a compact transmitter and receiver, requiring no software or driver installations, and can be set up in minutes. Rextron offers a range of USB HID and video extenders, with its HDMI/ DP/ USB-C series being interoperable. This means that an HDMI transmitter can be connected to a DP or USB-C receiver via a CAT6x cable, and vice versa.
The Rextron Multi Touch Video Extender SHA1MU-M403 is compatible with Windows, Mac, and Linux operating systems. It consists of a compact transmitter and receiver, requiring no software or driver installations, and can be set up in minutes. Rextron offers a range of USB HID and video extenders, with its HDMI/ DP/ USB-C series being interoperable. This means that an HDMI transmitter can be connected to a DP or USB-C receiver via a CAT6x cable, and vice versa.
● Short Haul 35M KVM Extender Delivers HDMI 2.0 Uncompressed 4K @ 60Hz (4:4:4) Video Transmission over CAT 6/7 Cable
● Flexible 4-Mode HDCP Management : Hardware Slide Switch Offers Auto, HDCP 2.2, HDCP 1.4, and Non-HDCP Modes to Eliminate Protected Content Display Compatibility Issues
● Interactive USB Multi-Touch & HID Support : Empowers Multi-Touch Interactive Applications ( Huddle Room / Smart Classroom )
● Hardware-Level USB Data Isolation : Restricts Transmission Exclusively to USB HID Signals, Blocking Flash Drives And Unauthorized Devices for Enhanced Data Security
● Host Bus-Powered Design Simplifies Connection
● Optimized for Modern Workspaces : Ideal for Huddle Rooms, Smart Classrooms, Kiosk, and Security-Sensitive Applications
