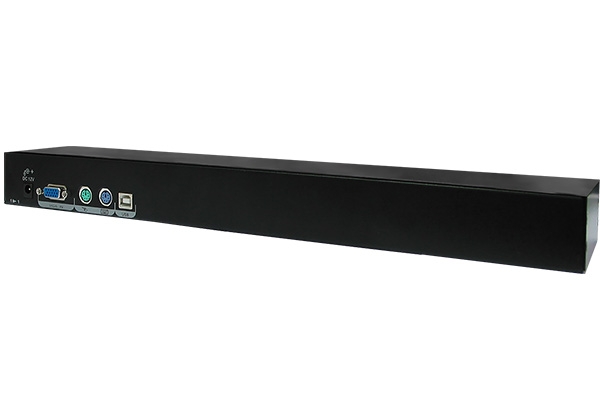

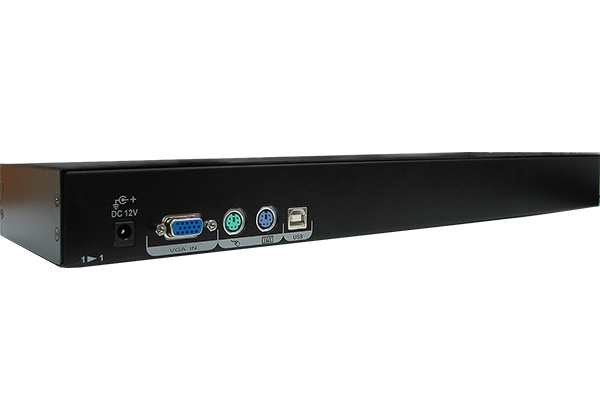

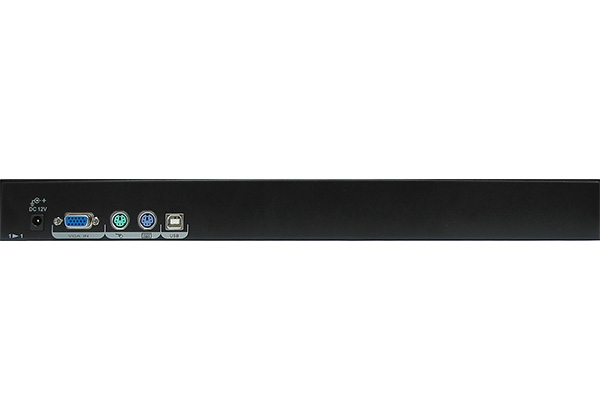

Integra KVM Module, USB PS2 Hybrid VGA KVM Switch
IGM-001
Integra KVM Module, USB PS2 Hybrid VGA KVM Switch, IGM-001
The combination of LCD Console Drawer and Integra KVM Switch Module offers the latest and the most efficient way of controlling server rooms and multiple computers. Many models of Integra KVM Switch Modules are available to control from 8 to 136 servers by the LCD Console Drawer.
USB PS2 Hybrid VGA KVM Switch IGM-001 can operate 1 computer by the connection of LCD Console Drawer efficiently managing computer in sever room where the space is at a premium. The management capability can be easily expanded up to 16 servers/computers through KVM Switch Unit cascading. The compatibility of USB and PS/2 PC connections increases the flexibility with existing devices selections.
The KVM Switch Module in cascade ( Master / Slave ) Configuration
The combination of LCD Console Drawer and Integra KVM Switch Module offers the latest and the most efficient way of controlling server rooms and multiple computers. Many models of Integra KVM Switch Modules are available to control from 8 to 136 servers by the LCD Console Drawer.
USB PS2 Hybrid VGA KVM Switch IGM-001 can operate 1 computer by the connection of LCD Console Drawer efficiently managing computer in sever room where the space is at a premium. The management capability can be easily expanded up to 16 servers/computers through KVM Switch Unit cascading. The compatibility of USB and PS/2 PC connections increases the flexibility with existing devices selections.
The KVM Switch Module in cascade ( Master / Slave ) Configuration
For applications with a large number of computers, USB PS2 Hybrid VGA KVM Switch, IGM-001 supports cascading architecture in a master/slave configuration to manage even more computers. You can connect a second level of one KVM Switch Module to a Master unit. Cascade configuration expands system ability, allowing you to select computers connected to the Slave. There is only one Master that connects to the LCD Console directly operated by a user. Once connected, the KVM Switch Module automatically configure themselves to either Master or Slave.
- Cascade configuration expands system capability
- Cascadable to all 19 rack mountable PS/2 KVM Switches
- Plug and play system configuration.
- Integrates with the LCD console drawer via the C-36 interface.
- Supports either PS/2 or USB interface.
- The keyboard and mouse can be hot-plugged at any time.
- 1U-height form factor saves rack spaces.
|
Model Name |
IGM-001 |
|
Computer/Server Ports (input) |
VGA x 1 |
|
Console Ports (output) |
C-36 |
|
Video Resolution (Max.) |
|
|
LCD KVM drawer connector |
C-36 |
|
Applicable to computer |
PS/2 PC, USB PC, USB-Sun, USB-Mac |
|
Size |
1U |
|
Operation Environment |
DC 9~12V |
|
Storage Temperature |
0~40°C, Humidity<80% |
|
Power Supply |
-20~60°C |
|
Enclosure |
Metal |
|
H x W x D (mm) |
44 x 404 x 114 |
|
Weight (g) |
XXXX |
