Product Name : 9(8+1) Ports 4K HDMI Video Switch with IR, Serial, Cascade Port
Product No : VKSM-S1091
Read More
Product Description
  • Display 4K HDMI signal from 8+1 4K HDMI sources
  • Built-In HDCP engine
  • Audio embedding function allows users to diversely incorporate audio signal for more informative contents
  • EDID Copy & Auto EDID Learning function optimize the resolution for your application
  • Dedicated HDMI cascade port enables HDMI switches cascading for video source expanding
  • EGO Function: Versatile Port Selection Functions of Priority, Auto-sensing ,and Switch Mode
  • 4K 60 420
  • 4K 30
  • RS 232 Control
  • IR Control
  • EDID Management
  • HDCP 1.4

VKSM-S1091, 4K HDMI Switch, is a 9 (8+1) Ports 4K HDMI Switch with IR remote and serial control, and allows users to switch between 9 HDMI sources and then delivers the selected video stream to one HDMI output device (Monitor/ Projector). Dedicated HDMI cascade port enables HDMI switches cascading for video source expanding that means to turn the unit into a 16/24/32 ports HDMI Switch via Daisy-Chain feature. You can select the desired input source (up to 32 Max.) via the IR remote control or push buttons located on the switch.

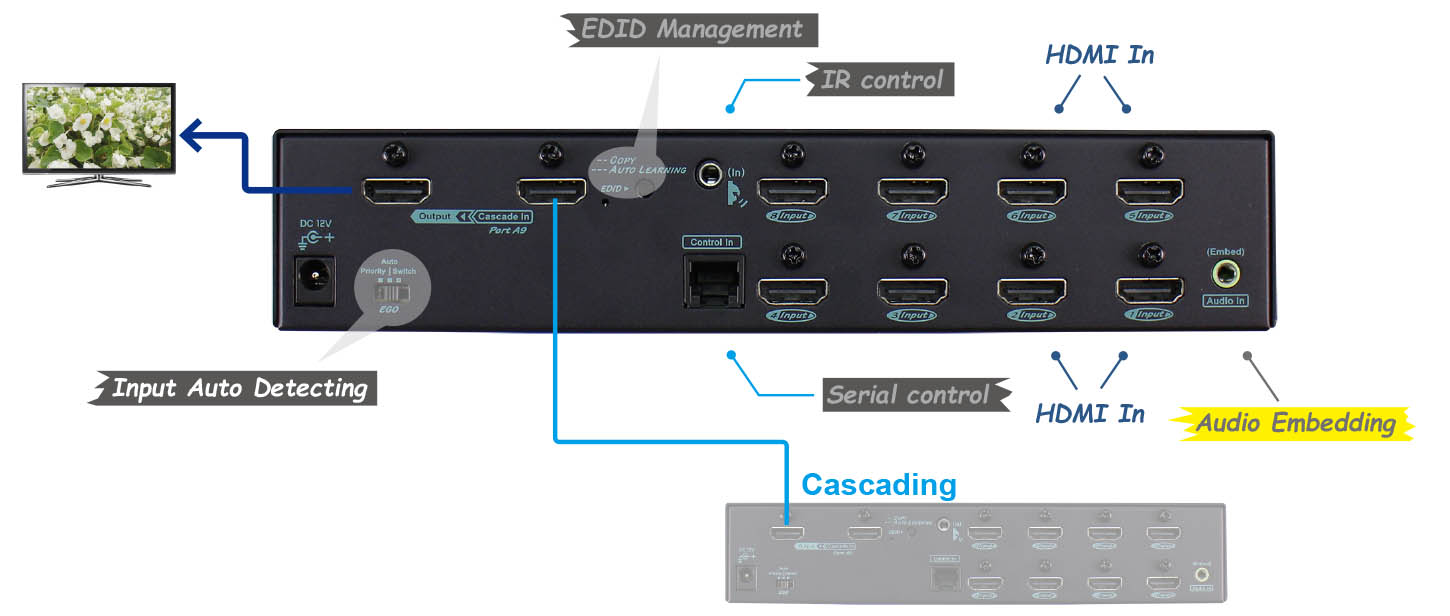

4K HDMI Switch-IO

The “Auto-switching / input auto detecting” function always routes the last connecting stream (as first priority) to the output. Audio embedder function embeds audio from a 3.5-mm source to an HDMI signal which allows users to diversely incorporate the audio signal for more informative contents in video postproduction that are beneficial for the conference call, meeting room or show room application.

EDID Auto Learning and EDID Copy functions allow the 4K HDMI Switch either to read the necessary EDID information from the switch unit itself or to copy EDID from the EDID compliant monitor, which ensures that every video source is displayed at the optimal resolution and format without any compatibility issue.

VKSM-S1091 4K HDMI Switch supports various ways of control that can be done thru front-panel buttons, RS-232 serial, and IR remote control. HDMI Switch RS-232 serial control with built-in RJ-11 serial interface for DB9 serial to RJ11 cable provides users easy and friendly operation. There is IR sensor window at the front panel designed with great aesthetic and efficiency to quickly and accurately control this unit. Furthermore, the distance between the emitter head and the IR port on the unit may be extended to provide users a flexible and easy way in IR control system installation (maximum 3 meters IR extension cable can be purchased separately).

● Display 4K HDMI signal from 8+1 4K HDMI sources
● Provide 4 ways to control the unit via Front panel push button IR remote control Serial control Auto-sensing mode
● Built-In HDCP engine for instant port switching ensures no realignment of Images after switching
● LEDs show real-time display status
● Enable/ Disable output port video signal
● Audio embedding function allows users to diversely incorporate audio signal for more informative contents
● EDID Copy & Auto EDID Learning function optimizes the accurate resolution for your application
● Non-volatile memory stores all settings in case of blackout
● Dedicated HDMI cascade port enables HDMI switches cascading for video source expanding
EGO Function: Versatile Port Selection Functions of Priority, Auto-Sensing, and Switch Mode
● Priority: System will automatically select Source-1 to display (Source-1 > Source-2 > ……)
● Auto-Sensing: System will automatically select the latest video source to display
● User-friendly port switching via button pressing

Model Name

VKSM-S1091

  Video Resolution (Max.)

  4K@30Hz (4:4:4)

  Video Input

  HDMI x 8
  Cascade Port HDMI x 1

  Audio Input

  3.5 mm Audio Jack x 1

  Video Output

  HDMI x 1

  HDCP Compliance

  HDCP 1.4 support

  Push Button

  Power Button x 1
  EDID Copy x 1
  Input Port Selection x 8
  Audio Embed / Function Button x 1
  Output Selection / Output Block Button x 1

  LED Indicator

  Status LED x 1 (Multi-Color)
  Video Input x 8

  Slide Switch

  EGO Slide Switch / Priority / Auto / Switch

  Serial Control

  RJ-11 Port x 1 ( RS-232 )

  IR Remote Control

  3.5 mm Jack x 1 ( Rear )

  Power Supply

  DC12V

  Enclosure

  Metal

  Dimension H x W x D (mm)

  45 x 118 x 220

  Weight (g)

  930

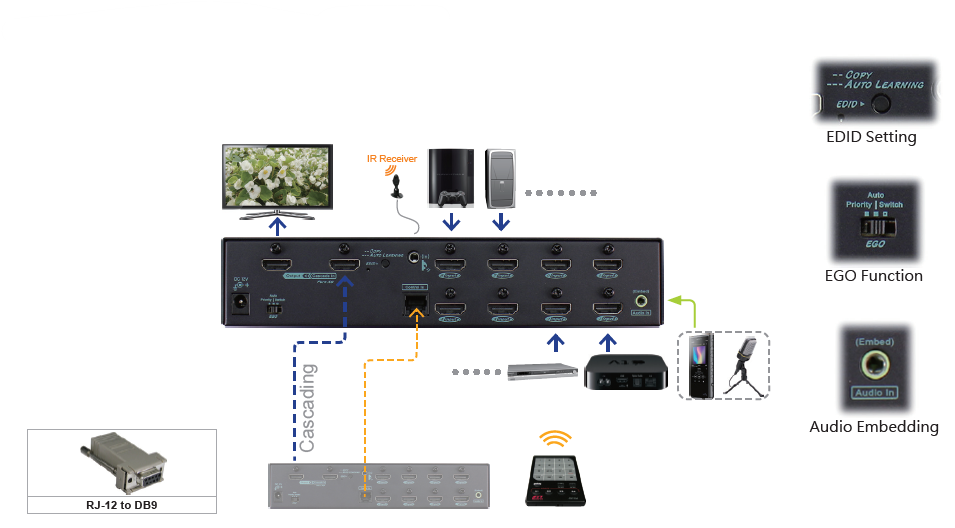

4K HDMI Switch-connection
